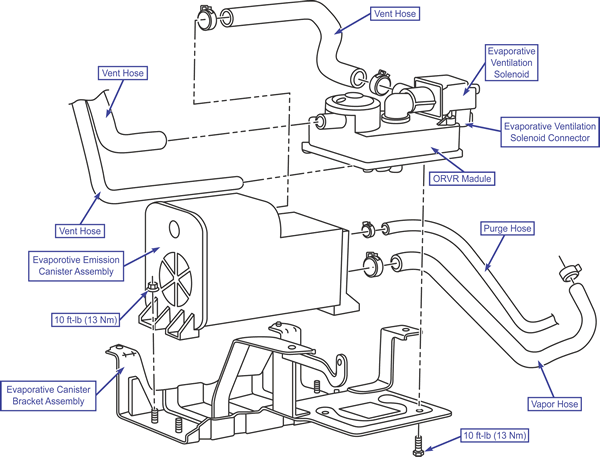

Evaporative Emission Canister/On-Board Refueling Vapor Recovery Module/Evaporative Ventilation Solenoid

Removal & Installation

To Remove:

1. Disconnect the connector for the evaporative ventilation solenoid.
2. Disconnect the purge hose.
3. Disconnect the vapor hose.
4. Remove the evaporative canister bracket assembly.
5. Disconnect the vent hoses.
6. Remove the evaporative ventilation solenoid.
7. Remove the on-board refueling vapor recovery module (ORVR).
8. Remove the evaporative emission canister assembly.

To Install:

1. Install the evaporative emission canister assembly.
2. Install the ORVR module.
3. Install the evaporative ventilation solenoid.
4. Connect the vent hoses.
5. Install the evaporative canister bracket assembly.
6. Connect the vapor hose.
7. Connect the purge hose.
8. Connect the connector for the evaporative ventilation solenoid.
