Knock Sensor (KS)

Removal & Installation

To Remove:

1. Remove the Intake Manifold.

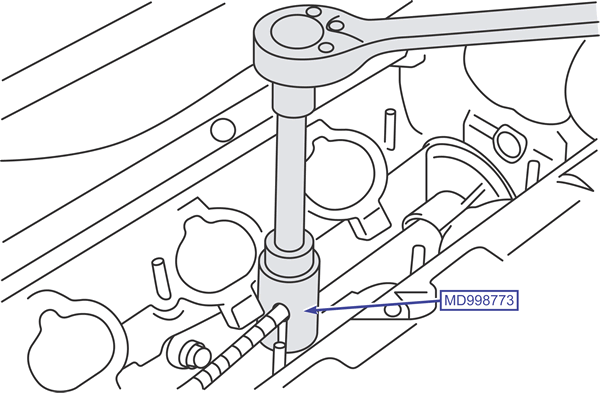

2. As shown in the illustration, use a special tool (MD998773) to remove the knock sensor.

To Install:

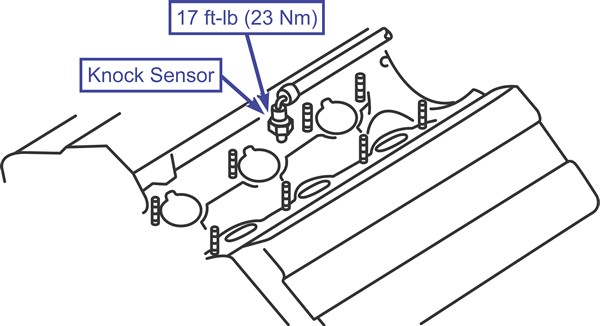

1. Install the knock sensor.
2. Install the Intake Manifold.
