Door Lock Actuator

Removal & Installation

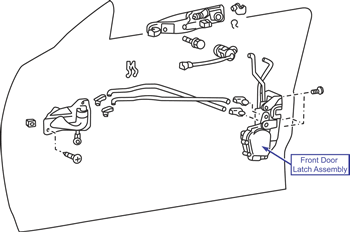

Front

NOTE: Front door lock actuator is integral with the front door latch assembly.

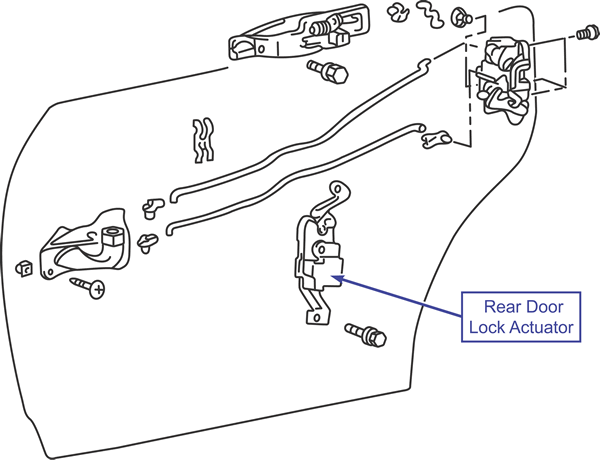

Rear

To Remove:

  1. Remove rear door inside handle.
  2. Remove rear door lock actuator.

To Install:

  1. Install rear door lock actuator.
  2. Install rear door inside handle.
