Radio /Tape Player/CD Player

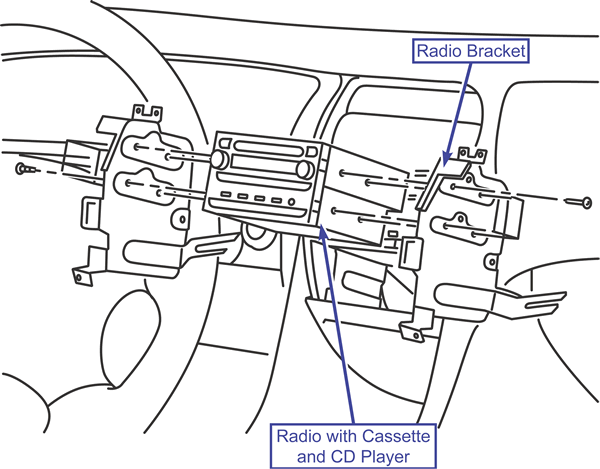

Removal & Installation

To Remove:

1. Remove the floor console assembly.
2. Remove the center air outlet assembly.
3. Remove the ashtray.
4. Remove the radio with cassette and CD player.
5. Remove the radio bracket.

To Install:

1. Install the radio bracket.
2. Install the radio with cassette and CD player.
3. Install the ashtray.
4. Install the center air outlet assembly.
5. Install the floor console assembly.
