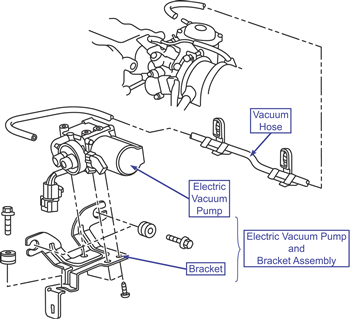

Vacuum Pump

Removal & Installation

To Remove:

1. Disconnect the vacuum hose.
2. Remove the electric vacuum pump and bracket assembly.
3. Remove the electric vacuum pump.
4. Remove the bracket.

To Install:

1. Install the bracket.
2. Install the electric vacuum pump.
3. Install the electric vacuum pump and bracket assembly.
4. Connect the vacuum hose.
