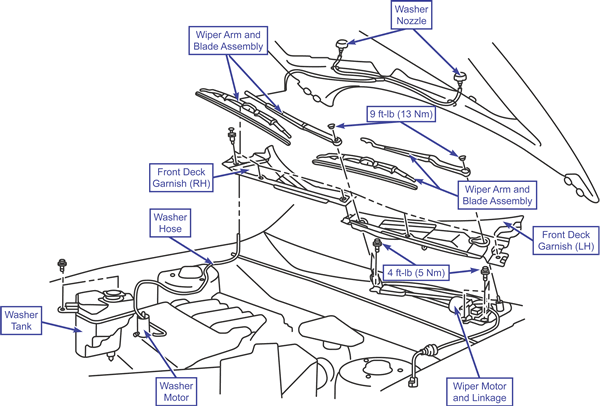

Wiper Arm, Wiper Motor, & Washer

Removal & Installation

To Remove:

1. Remove wiper arm and blade assembly.
2. Remove the front deck garnish (RH).
3. Remove the front deck garnish (LH).
4. Remove the wiper motor and linkage.
5. Remove the washer nozzle.
6. Remove the washer hose, washer tank, and washer motor.

To Install:

1. Install the washer motor, washer tank, and the washer hose.
2. Install the washer nozzle.
3. Install the wiper motor and linkage.
4. Install the front deck garnish (LH).
5. Install the front deck garnish (RH).
6. Install wiper arm and blade assembly.
