Shock Absorber

Removal & Installation

To Remove:

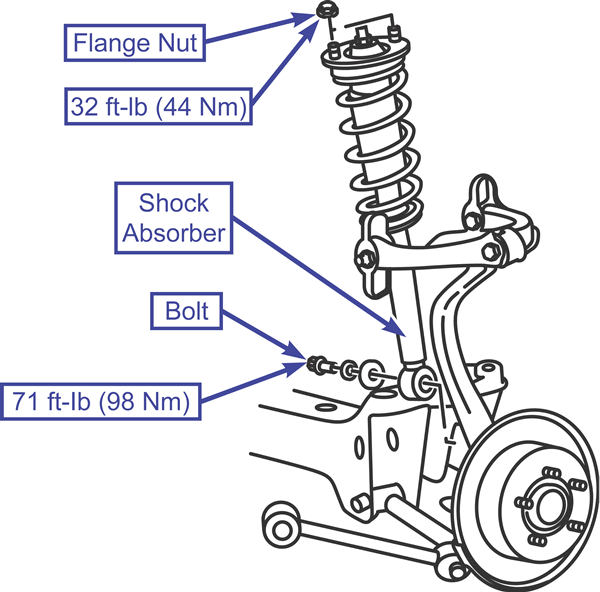

Shock absorber assembly (rear suspension)

  1. To access the shock absorber assembly, properly remove the rear seat.
  2. Remove the flange nut.
  3. Remove the bolt.
  4. Remove the shock absorber.

To Install:

Shock absorber assembly (rear suspension)

  1. Install the shock absorber.
  2. Install the bolt.
  3. Install the flange nut.
  4. Properly install the rear seat.
