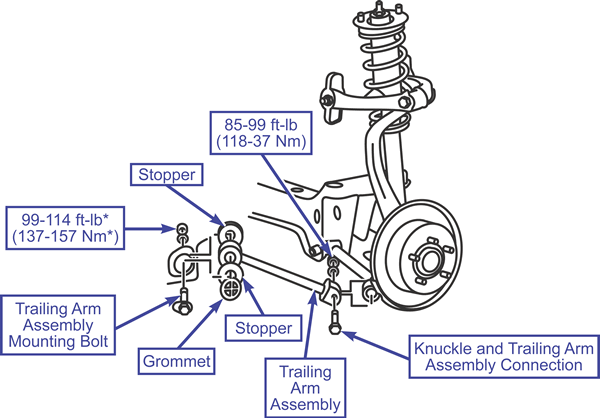

Trailing Arm Assembly

Removal & Installation

To Remove:

NOTE: Fasteners marked with * should be hand tightened until the vehicle is back on the ground, then they should be fully torqued to their specifications.

1. Disconnect the knuckle and trailing arm assembly connection.
2. Remove the grommet.
3. Remove the trailing arm assembly mounting bolt and the stopper.
4. Remove the trailing arm assembly.

To Install:

NOTE: Fasteners marked with * should be hand tightened until the vehicle is back on the ground, then they should be fully torqued to their specifications.

1. Install the trailing arm assembly.
2. Install the stopper and the trailing arm assembly mounting bolt.
3. Install the grommet.
4. Connect the knuckle and trailing arm assembly connection.
