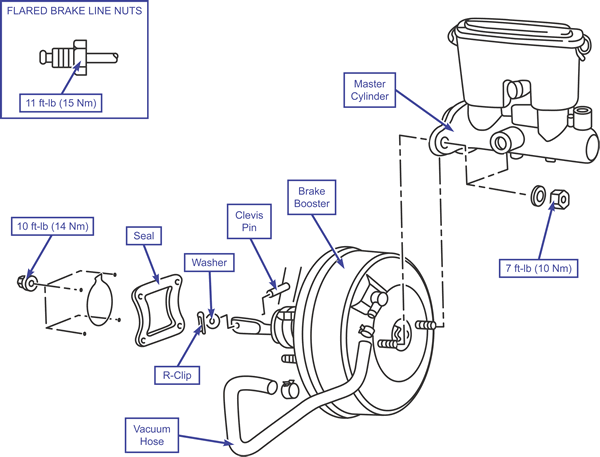

Master Cylinder and Brake Booster

Removal & Installation

To Remove:

1. Drain the brake fluid.
2. Remove the master cylinder.
3. Remove the vacuum hose. The vacuum hose has a built-in check valve.
4. Remove clevis pin.
5. Remove the washer and the R-clip.
6. Remove the brake booster and seal.

To Install:

1. Install the seal and brake booster.
2. Install the R-clip and washer.
3. Install the clevis pin.
4. Install the vacuum hose.
5. Install the master cylinder.
