NOTE: Install the throttle position sensor as in illustration 1. Rotate the sensor 90° counterclockwise as in illustration 2 and install the mounting screws.

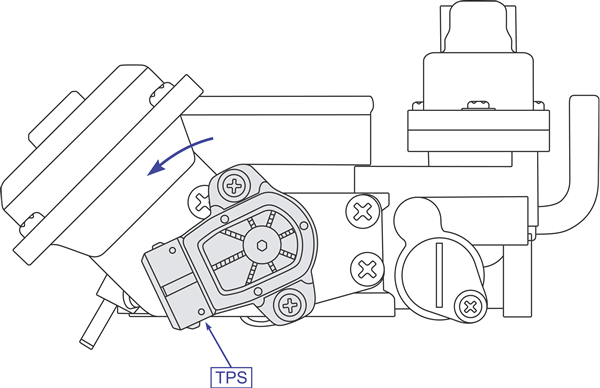

| Throttle position sensor (illustration 1)
|

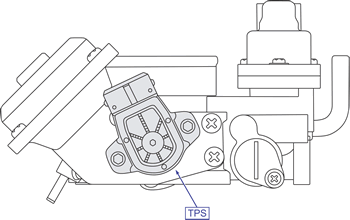

| Throttle position sensor (illustration 2)
|
| Throttle body exploded view (2.4L)
|
| Throttle body exploded view (3.0L)
|
