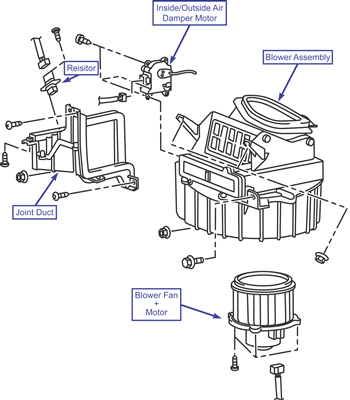

Blower Motor, Resistor & Inside/Outside Air Damper Motor

Removal & Installation

To Remove:

1. Remove the glove box and passenger’s side under cover.
2. Remove the joint duct and resistor.
3. Remove the blower motor and fan.

NOTE: Remove the center panel assembly and driver’s side under cover to access the inside/outside air damper motor.

To Install:

1. Install the blower motor and fan.
2. Install the joint duct and resistor.
3. Install the glove box and passenger’s side under cover.
