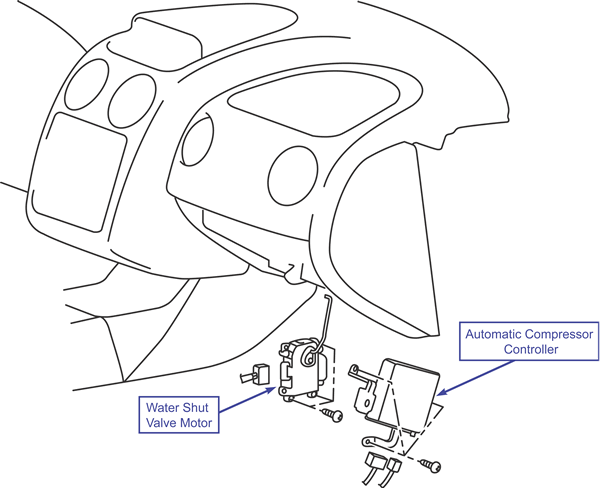

Water Shut Valve Motor

Removal & Installation

To Remove:

1. Remove the glove box.
2. Remove the center panel assembly.
3. Remove the under cover and right foot duct.
4. Remove the automatic compressor controller.
5. Remove the water shut valve motor.

To Install:

1. Install the water shut valve motor.
2. Install the automatic compressor controller.
3. Install the under cover and right foot duct.
4. Install the center panel assembly.
5. Install the glove box.
