| Fig. 1: 2.4L Engine Firing order: 1-3-4-2 Distributor
rotation: Counterclockwise
|

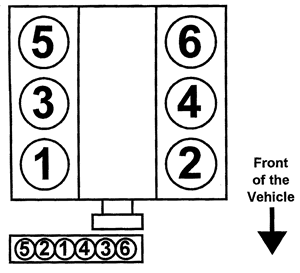

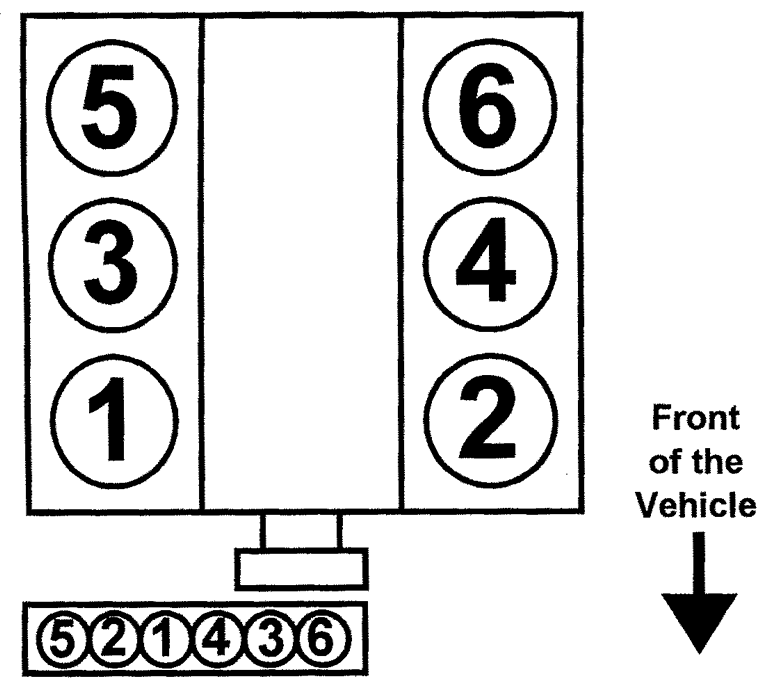

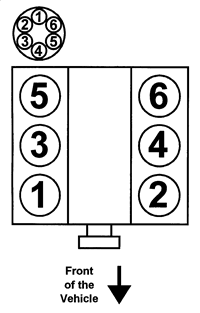

| Fig. 2: 3.0L Engines without DIS Firing order: 1-2-3-4-5-6
Distributor rotation: Counterclockwise
|

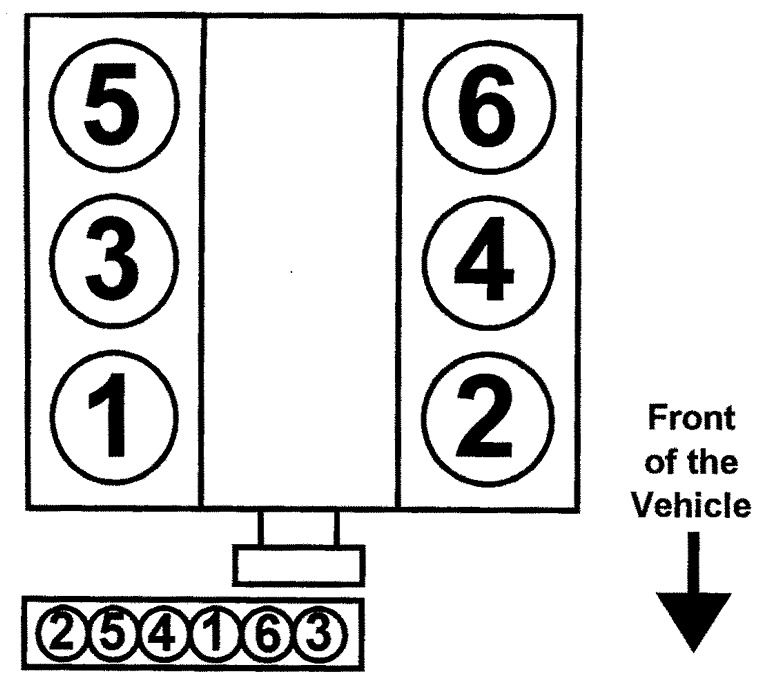

| Fig. 3: 3.0L Engines with DIS Firing order: 1-2-3-4-5-6
Distributorless ignition system
|
| Fig. 4: 3.5L Engine Firing order: 1-2-3-4-5-6 Distributorless
ignition system
|

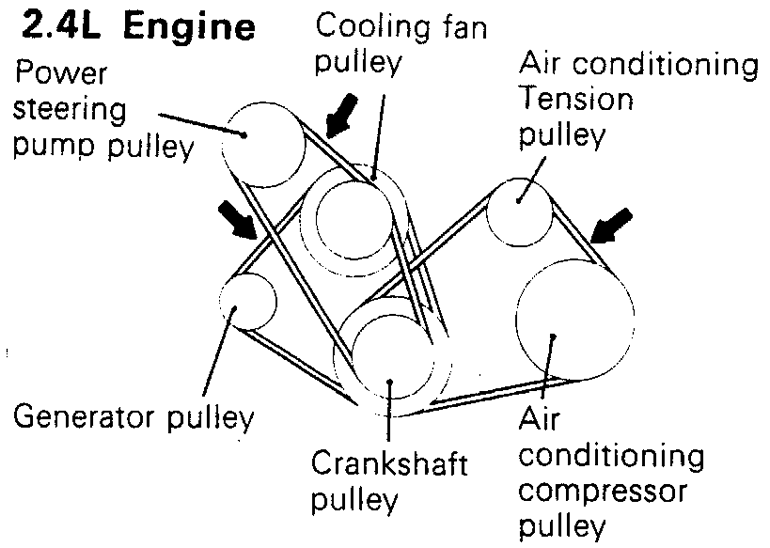

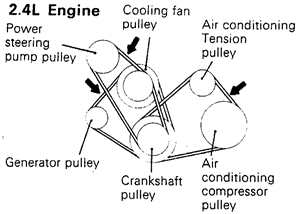

| Fig. 5: Accessory serpentine belt routing-2.4L engine
|

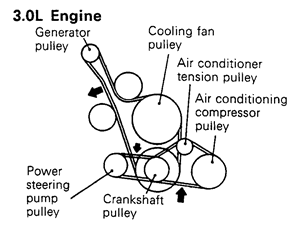

| Fig. 6: Accessory serpentine belt routing-3.0L engine
|

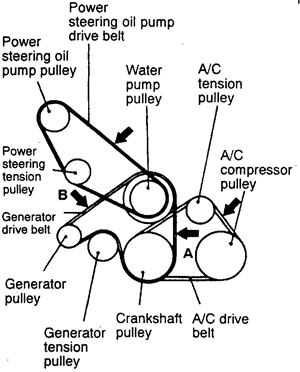

| Fig. 7: Accessory serpentine belt routing-3.5L engine
|
