NOTE: Partially drain the engine coolant before disconnecting the coolant hose from the throttle body.
CAUTION
After installation, make sure there is 0.04 - 0.08 inch (1.0 - 2.0 mm) of slack in the accelerator cable. Make sure the cable is not binding.

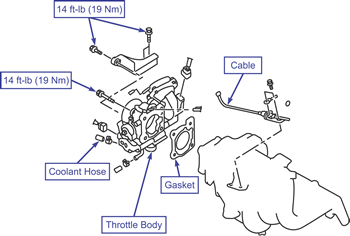

| Throttle body removal/installation (2.4L)
|

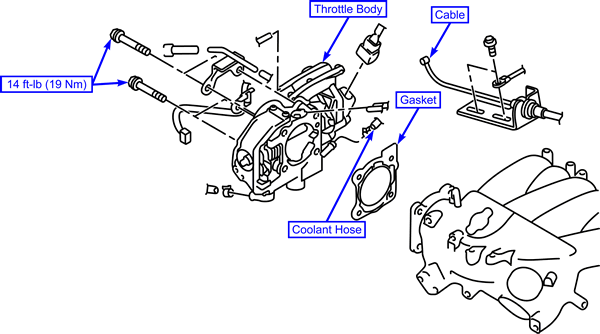

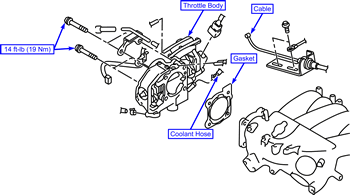

| Throttle body removal/installation (3.0L)
|
