Clutch Disc & Pressure Plate

Removal & Installation

NOTE: Make sure to lubricate the release fork friction surfaces and the center splined part of the clutch disc with grease during assembly.

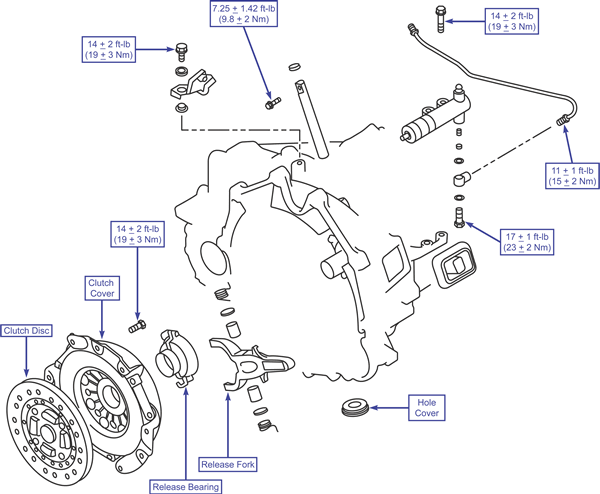

Clutch assembly removal/installation (2.4L)

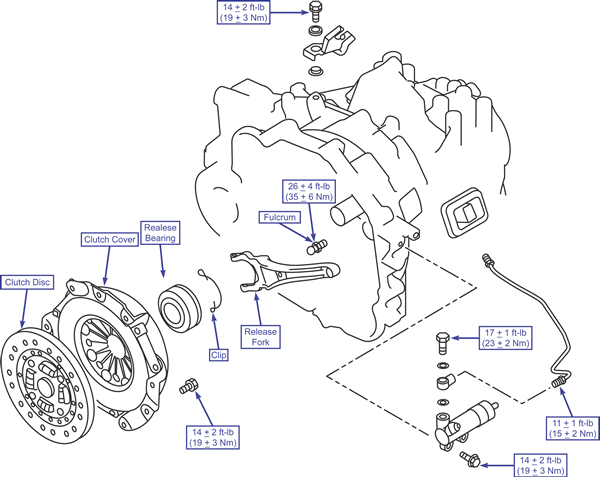

Clutch assembly removal/installation (3.0L)
