Coil Spring

Removal & Installation

1. Remove the strut from the vehicle.

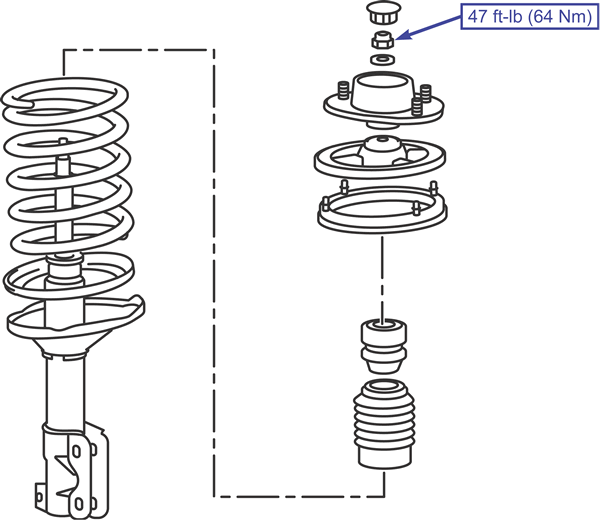

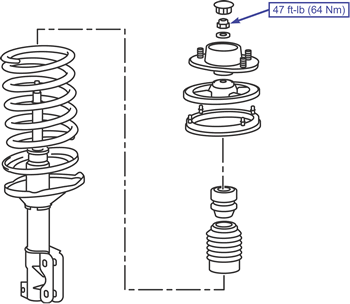

2. Disassembly the strut using the following illustrations to remove the coil spring.

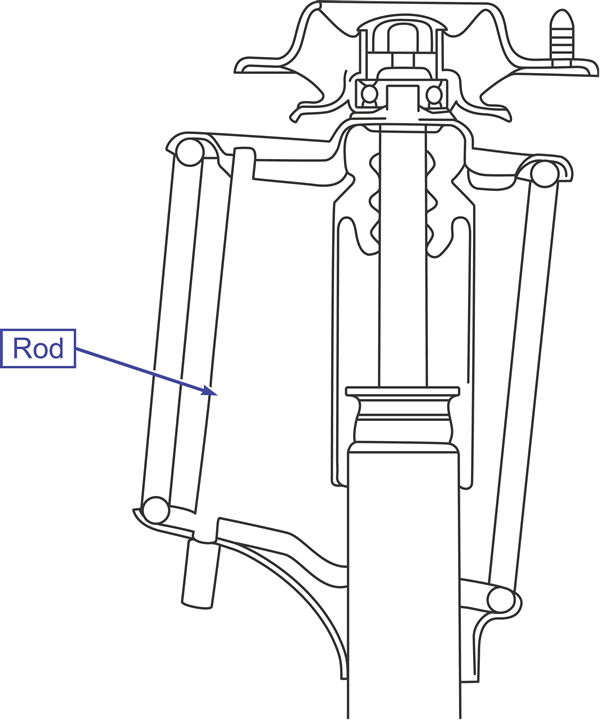

NOTE: Install the strut rod nut loosely. Using a rod, line up the holes in the lower spring seat with the hole in the upper spring seat. Align both ends of the coil spring with the grooves in spring seat, and then loosen spring compressor.
