Shock Absorber

Removal & Installation

NOTE: Make sure to install the shock absorber so the larger diameter side of the lower bushing inner pipe faces toward the outside of the vehicle

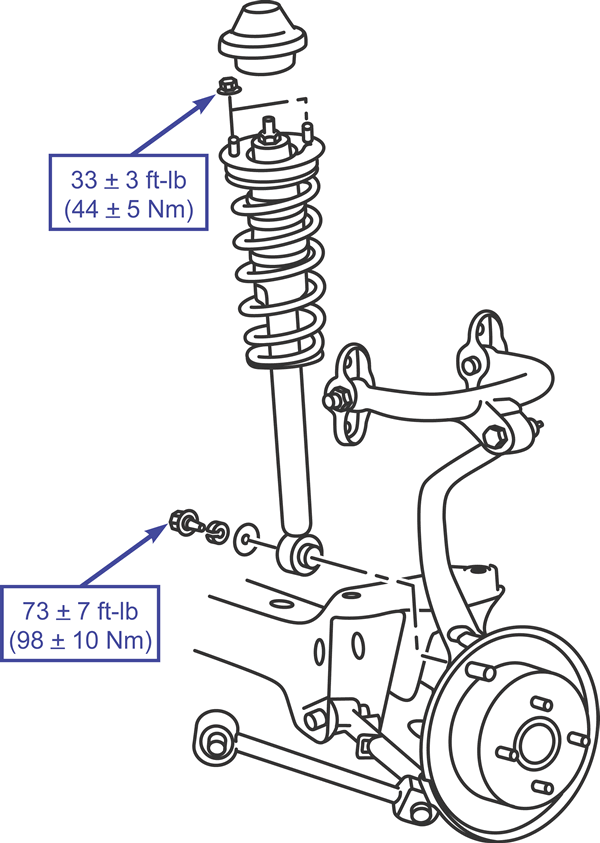

Rear shock absorber removal/installation
