Suspension Assembly

Removal & Installation

To Remove:

1. On spider models, close the convertible top completely.
2. On non convertible models, remove the service lid under the carpet in the luggage compartment.
3. Remove the center exhaust pipe.

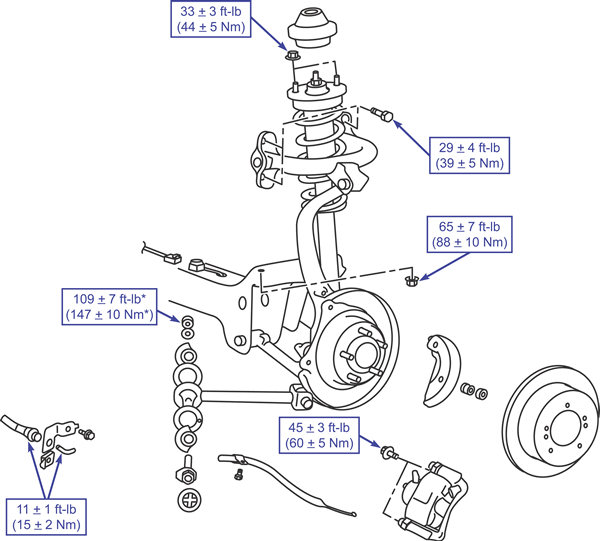

4. Refer to illustration for suspension assembly removal.

To Install:

1. Install the suspension components.
2. Install the center exhaust pipe.
3. Install the service lid in the luggage compartment.
