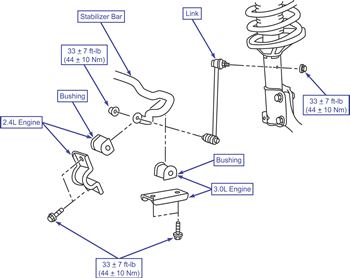

Sway Bar

Removal & Installation

To Remove:

1. Remove the front exhaust pipe (2.4L).
2. Remove the center member (2.4L).
3. Remove the stay (2.4L).
4. Remove the lower control arm.
5. Remove the stabilizer bar.

NOTE: If equipped with the 3.0L engine. Turn the steering wheel to the right when removing the left end of the stabilizer bar.

To Install:

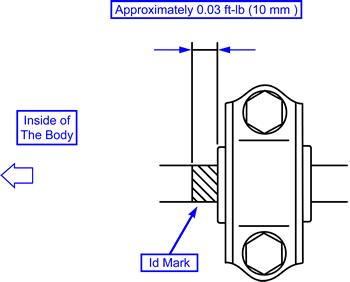

1. Install the stabilizer bar. Position the bar so that the left side id mark is at the shown position, and then tighten the bracket mounting bolt.

   Front stabilizer bar Id mark

2. Install the lower control arm.
3. Install the stay (2.4L).
4. Install the center member (2.4L).
5. Install the front exhaust pipe (2.4L).
