NOTE: Recover the refrigerant and cover all open refrigerant lines to prevent moisture from entering the system.
NOTE: The new compressor may contain 3.4 fl. oz of refrigerant oil. Drain and measure the amount of oil from the old compressor. Drain a portion of the oil from the new compressor so the remaining oil equals the amount drained from the old compressor.

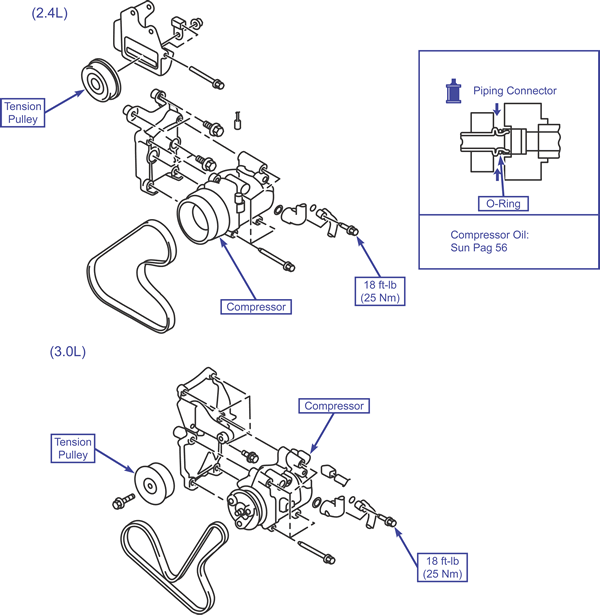

| Compressor & tension pulley removal/installation
|

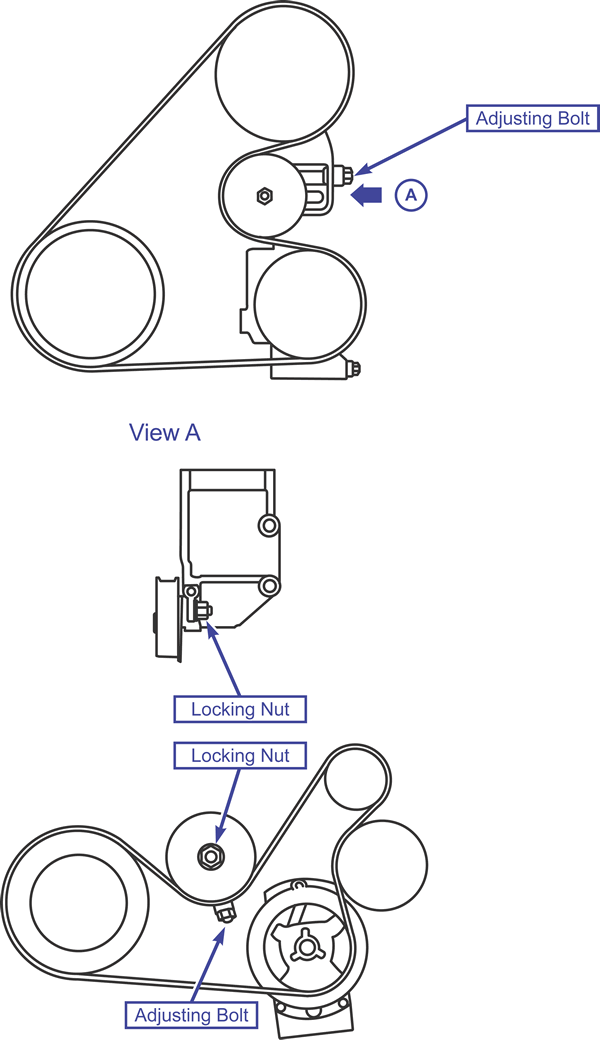

| A/C compressor tension pulley adjustment
|
