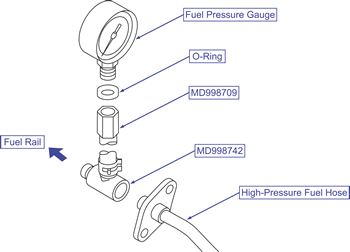

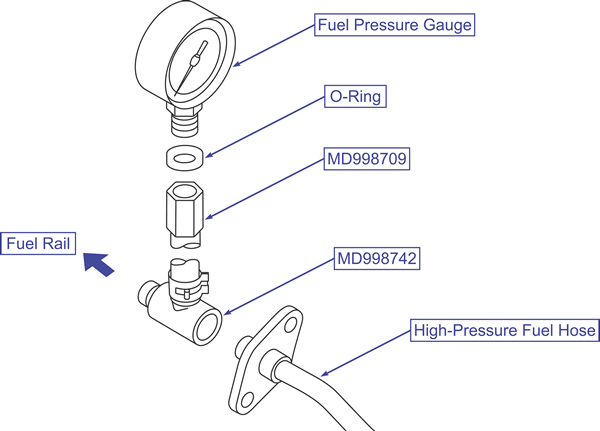

Fuel System Pressure Test

2.0L Engine

NOTE: Fuel pressure specification is approximate.
Regulated fuel system pressure; 47 psi (324 kPa) with vacuum hose connected.
Fuel pressure should hold for two minutes after the engine is stopped.

2.0L Turbo Engine

NOTE: Fuel pressure specification is approximate.
Regulated fuel system pressure; 33 psi (230 kPa) with vacuum hose connected.
Unregulated fuel system pressure; 42-45 psi (289-309 kPa) with vacuum hose disconnected and plugged.
Fuel pressure should hold for two minutes after the engine is stopped.

2.4L Engine

NOTE: Fuel pressure specification is approximate.
Regulated fuel system pressure; 47 psi (324 kPa) with vacuum hose connected.
Fuel pressure should hold for two minutes after the engine is stopped.
