Water Pump

Removal & Installation

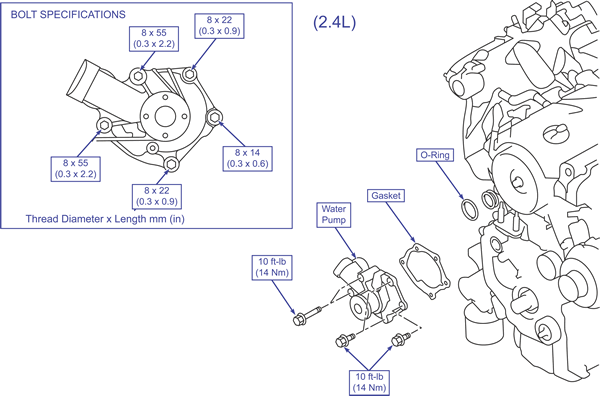

2.4L Engine

To Remove:

1. Drain the engine coolant.
2. Remove the timing belt.
3. Remove the water pump and gasket.

To Install:

1. Install the water pump with a new gasket and o-ring. Do not allow oil or grease to contact the o-ring.
2. Install the timing belt.
3. Refill the cooling system.

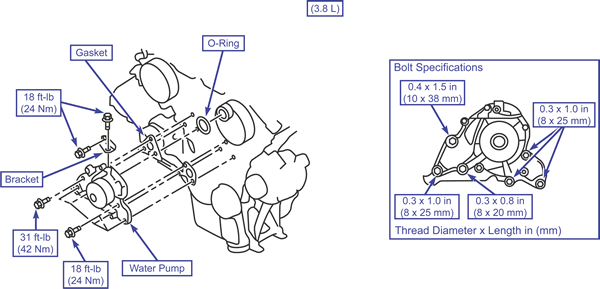

3.8L Engine

To Remove:

1. Drain the engine coolant.
2. Remove the timing belt.
3. Remove the crankshaft position sensor.
4. Remove the water pump bracket.
5. Remove the water pump and gasket.

To Install:

1. Install the water pump with a new gasket and o-ring. Do not allow oil or grease to contact the o-ring.
2. Install the water pump bracket.
3. Install the crankshaft position sensor.
4. Install the timing belt.
5. Refill the cooling system.
