Knock Sensor (KS)

Removal & Installation

2.4L Engine

NOTE: Perform the Learn Value Reset procedure with a scan tool after engine, knock sensor or throttle body replacement.

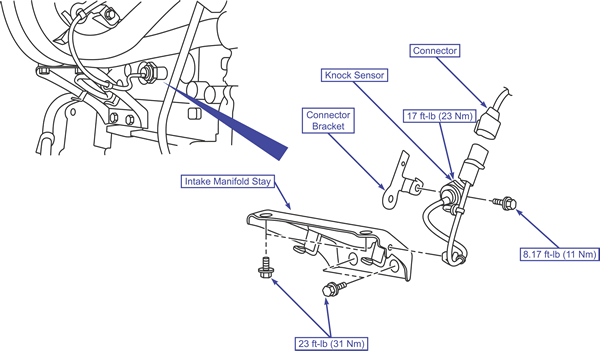

Knock sensor removal/installation (2.4L)

3.8L Engine

NOTE: Perform the Learn Value Reset procedure with a scan tool after engine, knock sensor or throttle body replacement.

NOTE: Remove the intake manifold to access the knock sensor.

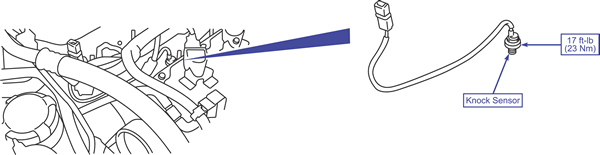

Knock sensor removal/installation (3.8L)
