Fuel System Pressure

Relieving Fuel System Pressure

  1. Remove the rear seat cushion.
  2. Remove the access hole cover.
  3. Disconnect the connector from the fuel pump module.
  4. Start the engine and allow it to stall, then crank it for two more seconds.
  5. Turn the key to the OFF (Lock) position.
  6. Connect the fuel pump module connector.
  7. Install the access hole cover and seat cushion.

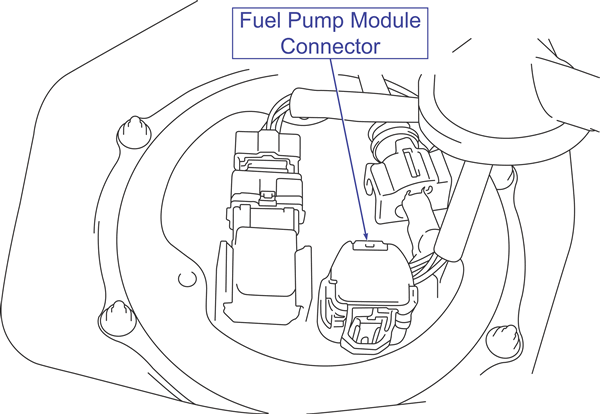

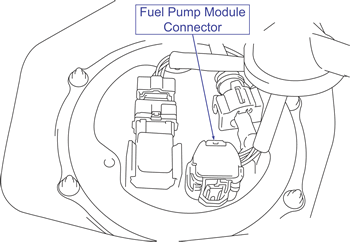

Fuel pump connector
