Ignition Coil

Removal & Installation

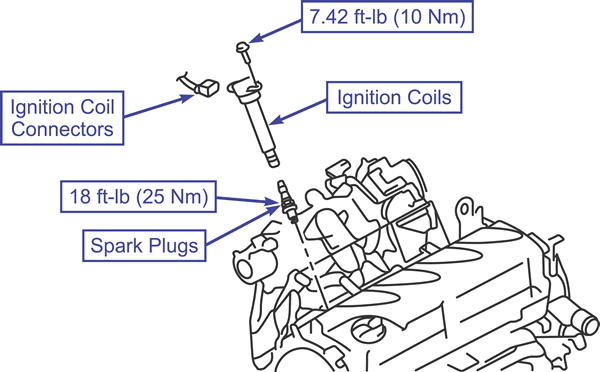

2.4L Engine

To Remove:

1. Disconnect the ignition coil connectors.
2. Remove the ignition coils.
3. Remove the spark plugs.

To Install:

1. Install the spark plugs.
2. Install the ignition coils.
3. Connect the ignition coil connectors.

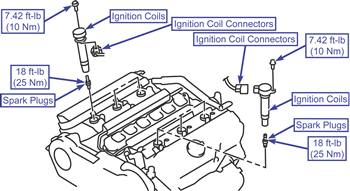

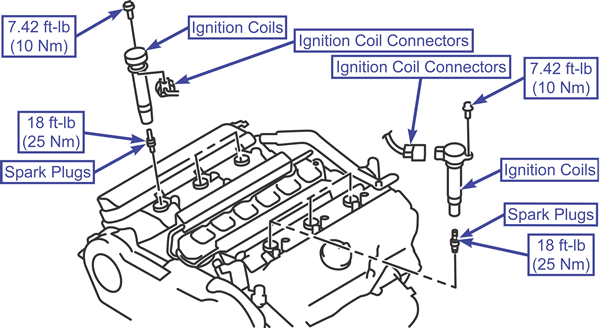

3.8L Engine

To Remove:

1. Remove engine cover on left bank.
2. Remove intake manifold plenum on right bank.
3. Disconnect ignition coil connectors.
4. Remove ignition coils.
5. Remove spark plugs.

To Install:

1. Install spark plugs.
2. Install ignition coils.
3. Connect ignition coil connectors.
4. Install intake manifold plenum on right bank.
5. Install engine cover on left bank.
