Once year, the battery terminal posts and the cable clamps should be cleaned. Loosen the clamp bolts (you may have to brush off any corrosion with a baking soda and water solution if they are really messy) and remove the cables, negative cable first. On batteries with posts on top, the use of a battery clamp puller is recommended. It is easy to break off a battery terminal if a clamp gets stuck without the puller. These pullers are inexpensive and available in most auto parts stores. Side terminal battery cables are secured with a bolt.
The best tool for battery clamp and terminal maintenance is a battery terminal brush. This inexpensive tool has a female ended wire brush for cleaning terminals, and a male ended wire brush inside for cleaning the insides of battery clamps. When using this tool, make sure you get both the terminal posts and the insides of the clamps nice and shiny. Any oxidation, corrosion or foreign material will prevent a sound electrical connection and inhibit starting or charging. If your battery has side terminals, there is also a cleaning tool available for these.

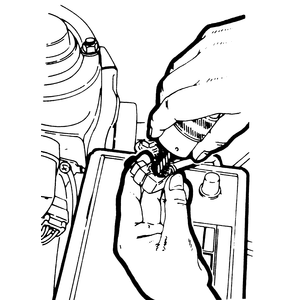

| Fig. 1: Clean the inside of the clamps with a wire
brush or a special tool
|
| Fig. 2: Special tools are also available for cleaning
the posts and clamps on side terminal batteries
|
Before installing the cables, remove the battery hold-down clamp or strap and remove the battery. Inspect the battery casing for leaks or cracks (which unfortunately can only be fixed by buying a new battery). Check the battery tray, wash it off with warm soapy water, rinse and dry. Any rust on the tray should be sanded away, and the tray given at least two coats of a quality anti-rust paint. Replace the battery, and install the hold-down clamp or strap, but do not overtighten.
Reinstall your clean battery cables, negative cable last. Tighten the cables on the terminal posts snugly; do not overtighten. Wipe a thin coat of petroleum jelly or grease all over the outside of the clamps. This will help to inhibit corrosion.
Finally, check the battery cables themselves. If the insulation of the cables is cracked or broken, or if the ends are frayed, replace the cable with a new cable of the same length or gauge.
CAUTION
Batteries give off hydrogen gas, which is explosive. DO NOT SMOKE around the
battery! The battery electrolyte contains sulfuric acid. If you should splash
any into your eyes or skin, flush with plenty of clear water and get immediate
medical help.
