Park the vehicle on a flat, level surface and leave the engine running. Turn the steering wheel several times to the left and right to raise the fluid to normal operating temperature. With the engine running, remove the cap from the power steering fluid reservoir. This unit is separate from the pump but connected to it by hoses. There are MAX and MIN marks on the dipstick connected to the cap. Add DEXRON® II automatic transmission fluid to the reservoir to bring the level up to the maximum.
At this time, you should inspect the hoses for signs of leakage or cracking. If either condition is noted, the defective hose or hoses should be replaced.
| Fig. 1: Checking the power steering fluid
|

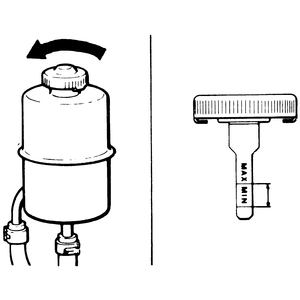

| Fig. 2: After turning the wheel back and forth several
times, remove the power steering pump cap to check the fluid level
|

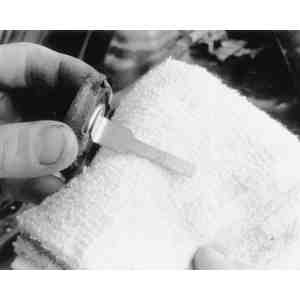

| Fig. 3: The dipstick attached to the underside of the
cap provides markings, with which the fluid level can be checked
|

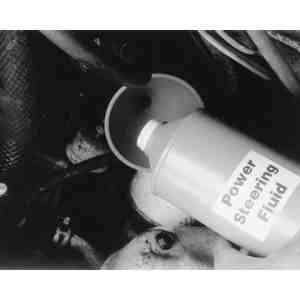

| Fig. 4: Use only new, clean power steering fluid to
fill the pump
|
