Along with the previous labels, the labels located on the underside of the hood are very helpful with vehicle identification and vehicle maintenance information. Three underhood labels are: vacuum hose installation/adjusting screw location label, important vehicle information label (which contains information for vehicle driveability and maintenance), and engine coolant label.

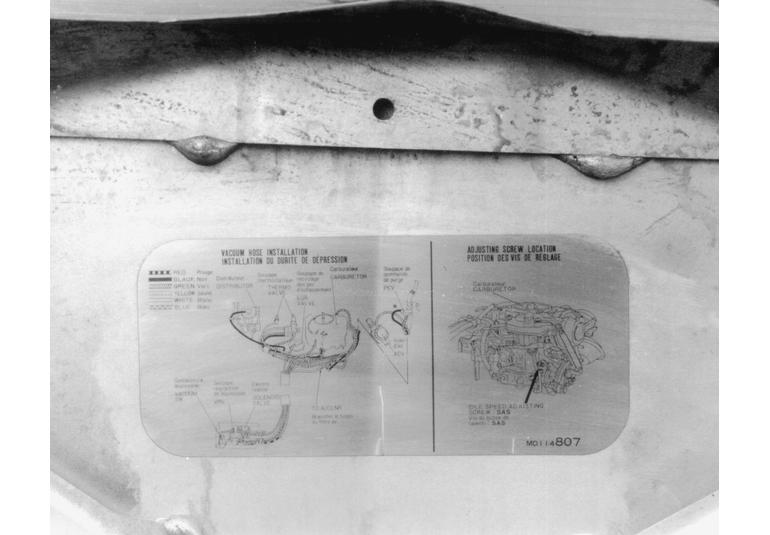

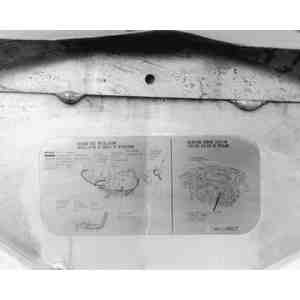

| Fig. 15: The vacuum hose installation/adjusting screw
location label, located on the underside of the hood
|

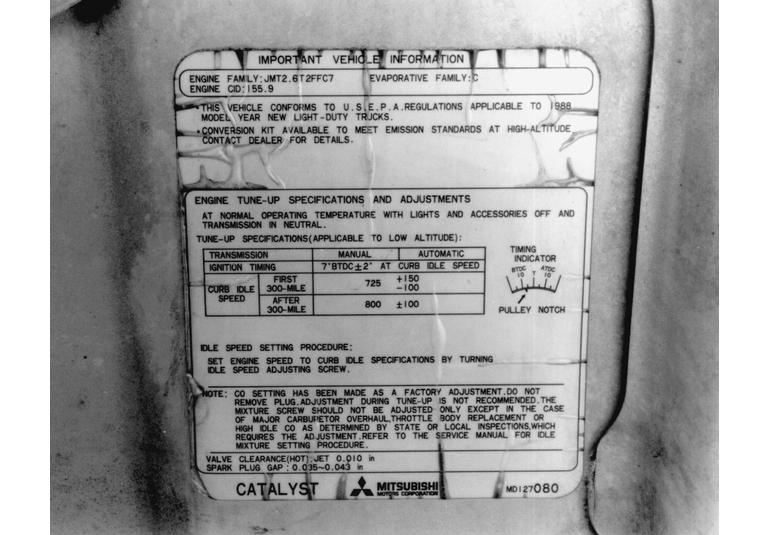

| Fig. 16: The important vehicle information label contains
information used for timing and carburetor adjustments
|

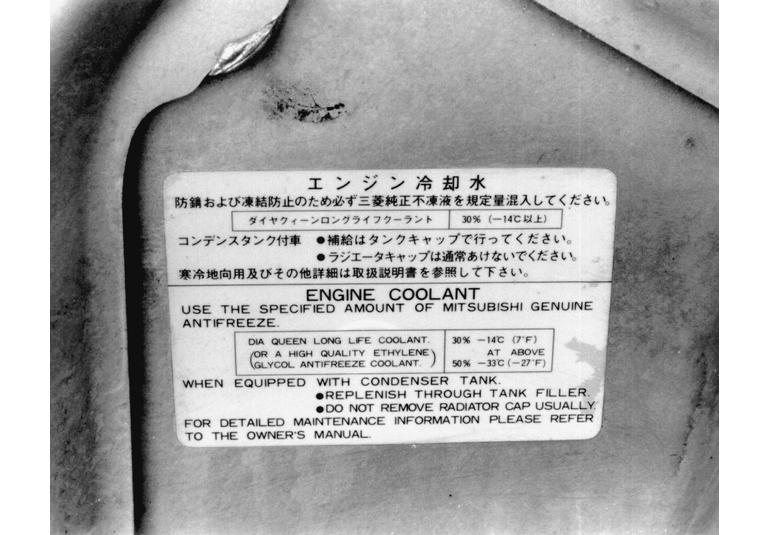

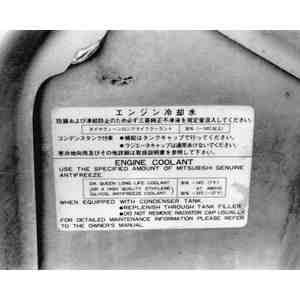

| Fig. 17: The engine coolant label contains information
useful when working on the cooling system
|
