The volume air flow sensor is located between the air cleaner and the air inlet hose. To remove the sensor, remove the air intake hose by loosening the screw-type hose clamp. Pull the air intake hose off of the sensor. Loosen the four nuts holding the sensor to the air cleaner assembly box and pull the sensor off of the air cleaner. When installing the sensor back onto the air cleaner box, use a new gasket and tighten the mounting nuts to 6–7 ft. lbs. (8–10 Nm).

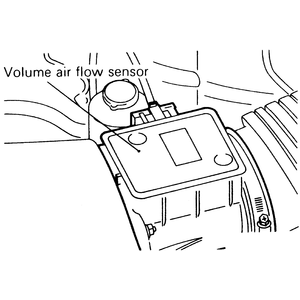

| Fig. 1: The location of the volume air flow sensor — all
models similar
|
