Removing the condenser is not difficult, although some bolts may be difficult
to gain access for removal and installation. Some home mechanics may encounter
air conditioning troubles after the condenser is reinstalled and the system
fails to work properly. Remember some simple rules to avoid air conditioning
problems:
- Dirt and moisture are extremely detrimental to the air conditioning system.
Any line which is disconnected should be immediately plugged or capped with
a tight-fitting seal.
- Handle lines and hoses carefully; any bend or kink reduces system capacity.
Never attempt to straighten a bent line — replace it.
- If the line fitting has two wrench fittings, counterhold one while turning
the other. The lines are lightweight metal and bend easily.
- Even though the system is discharged, loosen fittings slowly and listen
for any remaining pressure; allow it to bleed slowly before removing the line.
- Most line joints or fittings contain a small rubber O-ring. Always replace
it before rejoining the lines. Make sure the new O-ring is free of nicks or
scratches.
- Fittings must be reconnected carefully and tightened to the correct torque.
Too tight damages threads, too loose will leak.

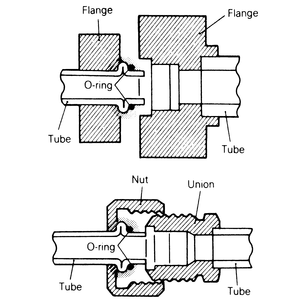

| Fig. 1: Flange and union fittings used on air conditioning
lines
|
