REMOVAL & INSTALLATION

1. Remove the glove box assembly stoppers from the sides of the glove box assembly.
2. Swing the glove box down and out of the way.
3. The A/C control unit is located up inside of the glove box assembly hole. Remove the retaining screws and pull the unit from its mounting place.

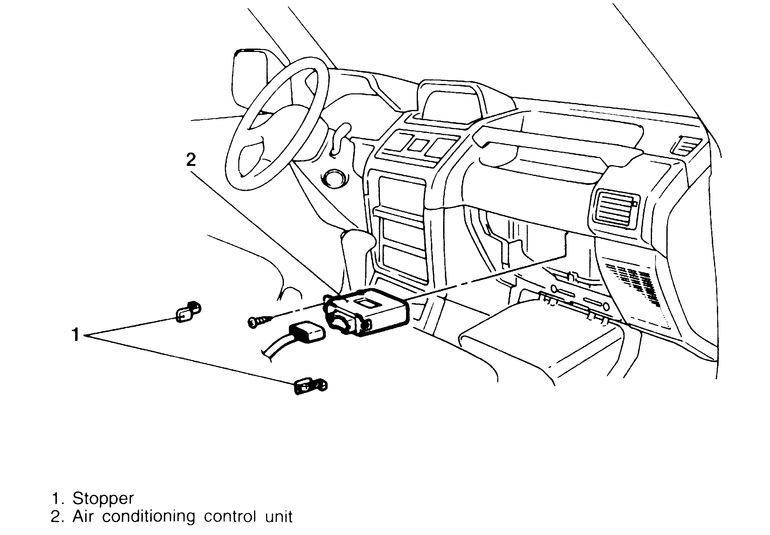

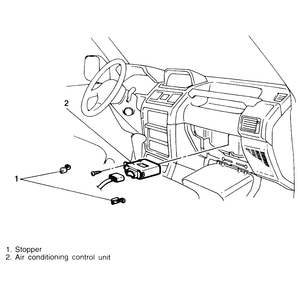

   Fig. 1: Air conditioning control unit removal and installation — 1992–95 Monteros

4. Unplug the wiring harness connector from the unit.
5. To install the A/C control unit, plug the wiring harness connector back into the unit.
6. Attach the unit in its place with the retaining screws.
7. Swing the glove box assembly back up into place and install the glove box stoppers.
