REMOVAL & INSTALLATION

1. Support the vehicle safely on jackstands. Support it at a height which will allow sufficient room to reach the upper shock absorber mount.
2. Remove the wheel.
3. Remove the upper shock nut, washer and bushing.
4. Remove the lower mounting bolt(s) and remove the shock from the vehicle.
5. Install the shock absorber in the vehicle and loosely tighten the upper shock absorber nut. Make sure the install the bushings and washers before installing the upper nut.
6. For 4WD vehicles, install the shock absorber so that the white paint mark at the lower side of the shock absorber faces the outer side of the vehicle. Install the lower shock absorber bolt(s). On 1992–95 Montero torsion bar suspensions, tighten the single lower mounting bolt and nut to 65–76 ft. lbs. (88–103 Nm). On all other vehicles (whether torsion bar or coil spring suspensions), the two lower shock absorber mounting bolts should be tightened only to 7–10 ft. lbs. (9–14 Nm).

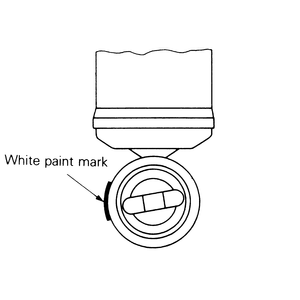

   Fig. 1: Install the shock absorber so that the white mark faces toward the outside of the vehicle — 4WD vehicles, except 1992–95 Monteros

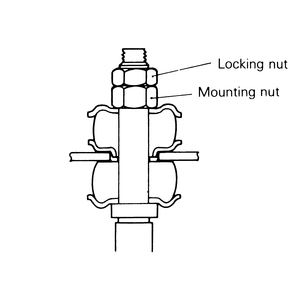

   Fig. 2: Install the bushings, washers and nuts in the order shown — except 1992–95 Monteros

7. On 1992–95 Monteros, tighten the shock absorber installation nut so that the dimensions shown in the illustration ( A and B) are at the standard values. These standard values are: A — 0.04–0.08 in. (1–2mm), B — 0.06–0.10 in. (1.5–2.5mm).

   WARNING
   When tightening the nut, be careful not to bend the stud pin of the washer assembly.

8. On all other vehicles, once the lower mounting bolt(s) are tightened, tighten the upper shock absorber mounting nut all the way to the end of the thread on the shock absorber stud, then tighten the locking nut to 9–13 ft. lbs. (12–18 Nm).
9. Install the wheel.
10. Lower the vehicle to the ground.

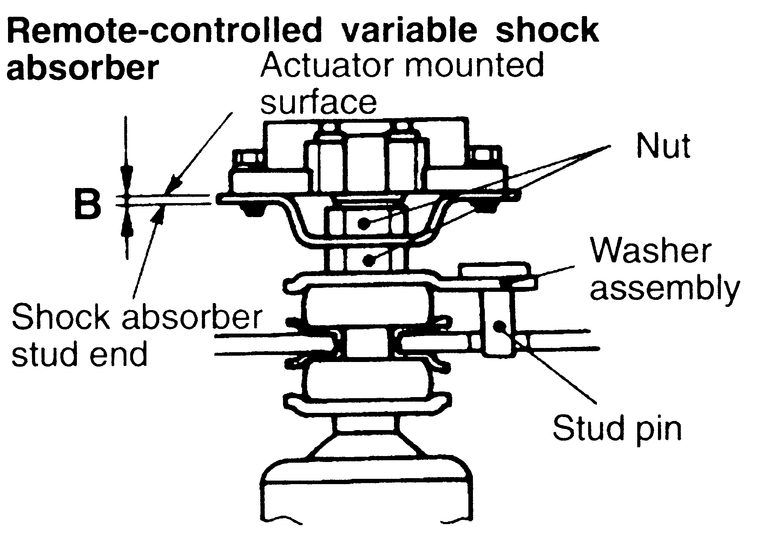

    Fig. 3: When installing the upper shock nuts on 1992–95 Monteros, make sure measurement A is 0.04–0.08 in. (1–2mm)

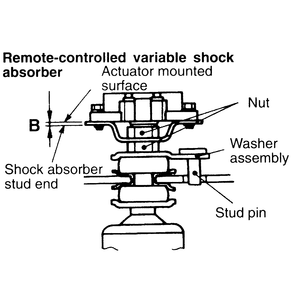

    Fig. 4: When installing the upper shock assembly, make sure its components are positioned as shown — 1992–95 Monteros
