MITSUBISHI MULTI COMMUNICATION SYSTEM



 To the Mitsubishi multi-communication system (MMCS), the multivision display (7-inch liquid crystal display of wide 2 DIN size) with built-in hard disc drive (40 GB) and CD/DVD drive has been installed.

  • The NAVTEQ map data has been stored.
  • The 7-inch wide liquid crystal monitor has been adopted. The operation switch for operability has been equipped.
  • Most sophisticated LSI* has been used as one for car navigation system.
    note *:LSI stands for Large Scale Integration, and is a large-scale integrated circuit (IC) containing between 1,000 and 100,000 circuit elements.
  • It is compatible with nine languages (English, Germany, French, Spanish, Italian, Portuguese, Dutch, Swedish and Danish).
  • Compatible with RDS function.
  • An exclusive tuner for TMC is incorporated.
  • Adopting the Rockford Fosgate ® premium sound system enables a great variety of sound and field settings through communication with the audio amplifier.
  • The hands free cellular phone system can be used by connecting the hands free-ECU. (Refer to .)
  • The language collaboration control between meter and hands free-ECU is supported.
  • Control by steering wheel audio remote control switch


The audio and video adapter has been established to the centre tray in order to connect visual equipment such as game machine and video player.
Function
 Content
Navigation
 Displays navigation functions such as road map, search, guidance and information retrieval.
Current vehicle location
 Information on vehicle’s current position (such as latitude, longitude and GPS reception status)
CD/DVD
 Plays the CD or DVD inserted to the drive (Designed for MP3/WMA file)
Music server
 Plays music recorded in the hard disk drive and records a music CD. (The title whose information is acquired from CDDB can be displayed.)
Radio
Displays available broadcast stations and channels. FM(RDS)/MW/LW
Sound control
 Adjusts the high/middle/low tone and balance. Function to set music type, sound field, and others when adopting the Rockford Fosgate ® premium sound system
AUX
 Plays the image and sound input through the audio and video adapter. (Image cannot be seen during driving because of the driving restriction.)
Drive information
 Displays the average fuel consumption, instantaneous fuel consumption, possible cruising distance, driving time, and lap time.
Environmental data
 Displays the atmospheric pressure, altitude and ambient temperature.
A/C information
 Displays the A/C information.
ETACS function customisation
 ETACS-ECU customisation function
Mobile Phone
 Function to operate the cellular phone (calling, receiving, etc.) using the multivision display <Vehicles with hands free-ECU>
Calendar
 Displays the calendar.

SYSTEM BLOCK DIAGRAM

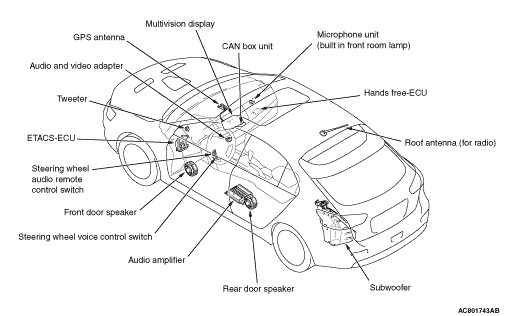

CONSTRUCTION DIAGRAM

ETACS function customisation function


The following ETACS functions can be customised by selecting "Equipment" on the "Settings" screen of the multivision display.
Group name
 Setting item
 Setting value
Keyless Entry System
 Turn Signal Lights Answerback
 Lock:Once Unlock:Twice (default)
Lock:Once Unlock:Off
Lock:Off Unlock:Twice
Lock:Twice Unlock:Once
Lock:Off Unlock:Once
Lock:Twice Unlock:Off
Lock:Off Unlock:Off
Multi Mode Keyless Entry System <Vehicles with electric retractable remote controlled door mirrors>
 Off
Power Window,
Door Mirror:Open & Close
Power Window:Close
Door Mirror:Open & Close (default)
Door Mirror:Open & Close
Multi Mode Keyless Entry System <Vehicles without electric retractable remote controlled door mirrors>
 Off
Power Window:Open & Close
Power Window:Close (default)
Keyless Operation System
 Turn Signal Lights Answerback
 Lock:Once Unlock:Twice (default)
Lock:Once Unlock:Off
Lock:Off Unlock:Twice
Lock:Twice Unlock:Once
Lock:Off Unlock:Once
Lock:Twice Unlock:Off
Lock:Off Unlock:Off
Multi Mode Keyless Entry System <Vehicles with electric retractable remote controlled door mirrors>
 Off
Power Window,
Door Mirror:Open & Close
Power Window:Close
Door Mirror:Open & Close (default)
Door Mirror:Open & Close
Multi Mode Keyless Entry System <Vehicles without electric retractable remote controlled door mirrors>
 Off
Power Window:Open & Close
Power Window:Close (default)
Door Entry and Engine Start Function
 Both Function On (default)
Door Entry Function On
Engine Start Function On
Both Function Off
Keyless Operation Answerback Beep Sounds
 Off
Sound at Keyless Operation (default)
Sound at Keyless Entry
Sound at both Keyless Entry and Keyless Operation
Time for Remote Unlock Inactivation after Locking
 Off
3 seconds (default)
5 seconds
Wipers
 Windshield Wipers Intermittent Operation
 4 seconds
Variable
Variable & Speed Sensitive
Variable & Rain Sensitive (default)
Wipers Linked to Washer
 Off
On (default)
Rear Wiper Intermittent Interval
 0 second
4 seconds
8 seconds (default)
16 seconds
Rear Wiper Continuous Operation
 Off (default)
On
Exterior Lamps/Interior Lamps
 Headlamp Auto-cutout Function
 Off
On (default)
Sensitivity for Auto Lamp
 Early
Somewhat Early
Normal (default)
Somewhat Late
Late
Interior Lamp Auto-cutout Time
 Off
3 minutes
30 minutes (default)
60 minutes
Duration Room Lamp Remains On after Door is Closed
 0 second
7.5 seconds
15 seconds (default)
30 seconds
60 seconds
120 seconds
180 seconds
Power window
 Timer Function after Ignition Switch Off
 0 second
30 seconds (default)
180 seconds
600 seconds
Open Operation after Ignition Switch Off
 On (default)
Off
Power Window Position Prohibited by Lock-switch
 Except Driver Door
All Doors (default)
Turn Signal
 Operation in Key Position
 Ignition Switch On or Accessory
Ignition Switch On (default)
Lane-change Signals (Flash Three Times with 1 Touch)
 Off
On (default)
Power Door Locks
 Automatic Relocking after Unlocked by Remote
 30 seconds (default)
60 seconds
120 seconds
180 seconds
Automatic Unlock when Transmission Shifted to Park <A/T, CVT, TC-SST>
 Off (default)
On
On only when Power Window is Unlocked
Others
 Auto Fold Mirrors <Vehicles without keyless entry system>
 No Auto Open/Close
Open by Vehicle Speed (default)
Open/Close by IG On/Off and Driver Door Open/Close
Auto Fold Mirrors <Vehicles with keyless entry system>
 No Auto Open/Close
Open by Vehicle Speed (default)
Open/Close by IG On/Off and Driver Door Open/Close
Open/Close by Keyless Entry (or Operation) Lock/Unlock
Auto Cut of ACC Power
 No Auto Cut
Auto Cut after 30 minutes (default)
Auto Cut after 60 minutes
