Code No. P0107: Manifold Absolute Pressure Sensor Circuit Low Input










OPERATION




FUNCTION




TROUBLE JUDGMENT


Check Conditions
Judgement Criterion
FAIL-SAFE AND BACKUP FUNCTION

PROBABLE CAUSES





DIAGNOSIS PROCEDURE


STEP 1. M.U.T.-III data list



  • Refer to Data List Reference Table .

    1. Item 8: Manifold absolute pressure sensor

Q. Is the check result normal?

Intermittent malfunction (Refer to GROUP 00 - How to Use Troubleshooting/Inspection Service Points - How to Cope with Intermittent Malfunctions ).
Go to Step 2.

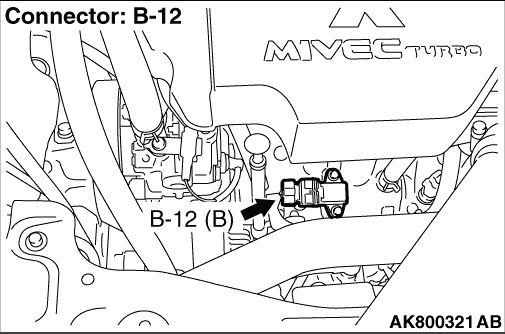

STEP 2. Connector check: B-12 manifold absolute pressure sensor connector


Q. Is the check result normal?

Go to Step 3.
Repair or replace the connector.

STEP 3. Perform voltage measurement at B-12 manifold absolute pressure sensor connector.



  • Disconnect connector, and measure at harness side.
  • Ignition switch: ON
  • Voltage between terminal No. 3 and earth.
OK: 4.9 - 5.1 V

Q. Is the check result normal?

Go to Step 7.
Go to Step 4.

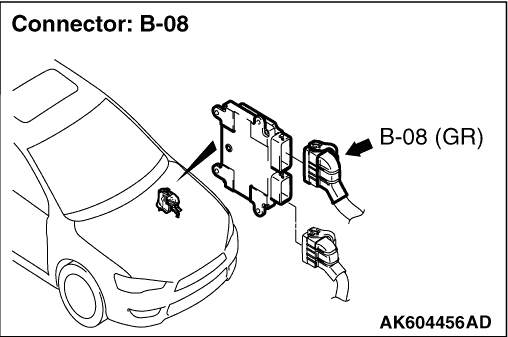

STEP 4. Connector check: B-08 engine-ECU connector


Q. Is the check result normal?

Go to Step 5.
Repair or replace the connector.

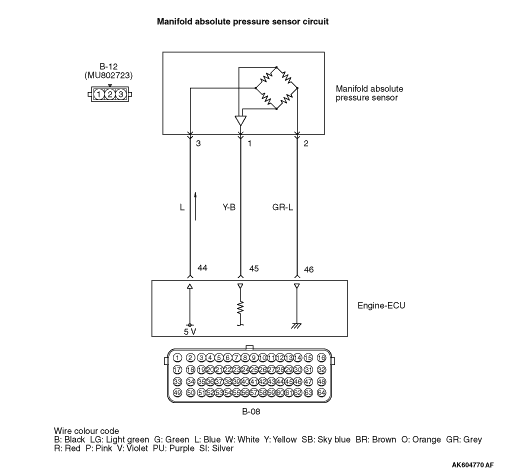

STEP 5. Check harness between B-12 (terminal No. 3) manifold absolute pressure sensor connector and B-08 (terminal No. 44) engine-ECU connector.



  • Check power supply line for open/short circuit.

Q. Is the check result normal?

Go to Step 6.
Repair the damaged harness wire.

STEP 6. M.U.T.-III data list



  • Refer to Data List Reference Table .

    1. Item 8: Manifold absolute pressure sensor

Q. Is the check result normal?

Intermittent malfunction (Refer to GROUP 00 - How to Use Troubleshooting/Inspection Service Points - How to Cope with Intermittent Malfunctions ).
Replace the engine-ECU.

STEP 7. Connector check: B-08 engine-ECU connector


Q. Is the check result normal?

Go to Step 8.
Repair or replace the connector.

STEP 8. Check harness between B-12 (terminal No. 3) manifold absolute pressure sensor connector and B-08 (terminal No. 44) engine-ECU connector.



  • Check power supply line for damage.

Q. Is the check result normal?

Go to Step 9.
Repair the damaged harness wire.

STEP 9. Perform voltage measurement at B-12 manifold absolute pressure sensor connector.



  • Use special tool test harness (MB991658) to connect connector, and measure at pick-up harness.
  • Ignition switch: ON
  • Voltage between terminal No. 1 and earth.

    Altitude 0 m: 1.2 - 1.8 V
    Altitude 600 m: 1.1 - 1.7 V
    Altitude 1,200 m: 1.0 - 1.6 V
    Altitude 1,800 m: 0.9 - 1.5 V

Q. Is the check result normal?

Go to Step 11.
Go to Step 10.

STEP 10. Check harness between B-12 (terminal No. 1) manifold absolute pressure sensor connector and B-08 (terminal No. 45) engine-ECU connector.



  • Check output line for short circuit.

Q. Is the check result normal?

Replace the manifold absolute pressure sensor.
Repair the damaged harness wire.

STEP 11. Perform voltage measurement at B-08 engine-ECU connector.



  • Disconnect engine-ECU harness, and connect special tool power plant ECU check harness (MB992110) to measure at connector for inspection.
  • Ignition switch: ON
  • Voltage between terminal No. 45 and earth.

    Altitude 0 m: 1.2 - 1.8 V
    Altitude 600 m: 1.1 - 1.7 V
    Altitude 1,200 m: 1.0 - 1.6 V
    Altitude 1,800 m: 0.9 - 1.5 V

Q. Is the check result normal?

Go to Step 6.

    Check and repair harness between B-12 (terminal No. 1) manifold absolute pressure sensor connector and B-08 (terminal No. 45) engine-ECU connector.

    • Check output line for open circuit and damage.
