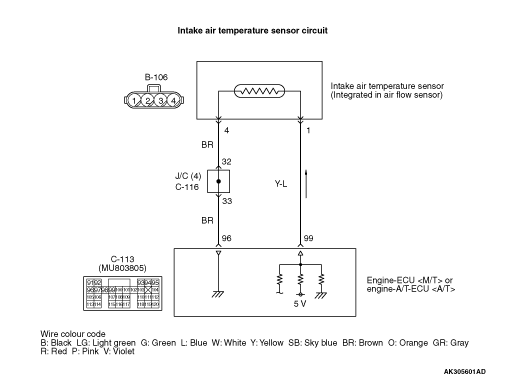

Code No. P0110: Intake Air Temperature Sensor System

OPERATION

A power voltage of 5 V is applied to the intake air temperature sensor output terminal (terminal No. 1) of the air flow sensor connector from the engine-ECU <M/T> or engine-A/T-ECU <A/T> (terminal No. 99).
The power voltage is earthed to the engine-ECU <M/T> or engine-A/T-ECU (terminal No. 96) from the air flow sensor (terminal No. 4).

FUNCTION

The intake air temperature sensor converts the intake air temperature into a voltage and inputs the voltage signal to the engine-ECU <M/T> or engine-A/T-ECU <A/T>.
In response to the signal, the engine-ECU <M/T> or engine-A/T-ECU <A/T> corrects the fuel injection amount, etc.
The intake air temperature sensor is a kind of resistor, which has characteristics to reduce its resistance as the intake air temperature rises. Therefore, the sensor output voltage varies with the intake air temperature, and becomes lower as the intake air temperature rises.

TROUBLE JUDGMENT

Check Conditions

2 seconds later after the ignition switch has been in ON position or the engine has started up.
The battery voltage is 8 V or more.

Judgment Criteria

The sensor output voltage is 4.6 V or more (intake air temperature of below -45°C or equivalent) for 4 seconds.

The sensor output voltage is 0.2 V or less (intake air temperature of above 125°C or equivalent) for 4 seconds.

PROBABLE CAUSE

Failed intake air temperature sensor
Open/short circuit in intake air temperature sensor circuit or loose connector contact
Failed engine-ECU <M/T>
Failed engine-A/T-ECU <A/T>

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III data list

Refer to Data List Reference Table .

Item 13: Intake air temperature sensor

OK: At ambient temperature (atmospheric temperature) or equivalent.

Q. Is the check result normal?

	Intermittent malfunction (Refer to GROUP 00 - How to Use Troubleshooting/Inspection Service Points ).

	Go to Step 2 .

STEP 2. Connector check: B-106 air flow sensor connector

Q. Is the check result normal?

Go to Step 3 .

Repair or replace.

STEP 3. Check intake air temperature sensor itself.

Check intake air temperature sensor itself (Refer to ).

Q. Is the check result normal?

	Go to Step 4 .

	Replace air flow sensor.

STEP 4. Perform resistance measurement at B-106 air flow sensor connector.

Disconnect connector, and measure at harness side.
Voltage between terminal No. 4 and earth.

OK: 2 Ω or less

Q. Is the check result normal?

Go to Step 8 .

Go to Step 5 .

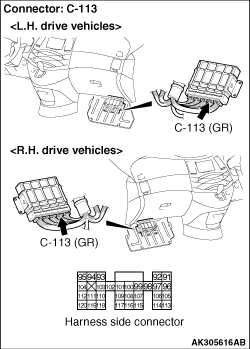

STEP 5. Connector check: C-113 engine-ECU <M/T> connector or engine-A/T-ECU <A/T> connector

Q. Is the check result normal?

Go to Step 6 .

Repair or replace.

STEP 6. Check harness between B-106 (terminal No. 4) air flow sensor connector and C-113 (terminal No. 96) engine-ECU <M/T> connector or engine-A/T-ECU <A/T> connector.

note

Before checking harness, check intermediate connector C-116, and repair if necessary.

Check earthing line for open circuit and damage.

Q. Is the check result normal?

Go to Step 7 .

Repair.

STEP 7. M.U.T.-III data list

Item No. 13: Intake air temperature sensor

OK: At ambient temperature (atmospheric temperature) or equivalent.

Q. Is the check result normal?

	Intermittent malfunction (Refer to GROUP 00 - How to Use Troubleshooting/Inspection Service Points ).

	Replace engine-ECU <M/T> or engine-A/T-ECU <A/T>.

STEP 8. Perform voltage measurement at B-106 air flow sensor connector.

Disconnect connector, and measure at harness side.
Ignition switch: ON
Voltage between terminal No. 1 and earth.

OK: 4.5 - 4.9 V

Q. Is the check result normal?

Replace engine-ECU <M/T> or engine-A/T-ECU <A/T>.

Go to Step 9 .

STEP 9. Perform voltage measurement at C-113 engine-ECU <M/T> connector or engine-A/T-ECU <A/T> connector.

Measure engine-ECU <M/T> or engine-A/T-ECU <A/T> terminal voltage.
Disconnect B-106 air flow sensor connector.
Ignition switch: ON
Voltage between terminal No. 99 and earth.

OK: 4.5 - 4.9 V

Q. Is the check result normal?

Go to Step 10 .

Go to Step 11 .

STEP 10. Connector check: C-113 engine-ECU <M/T> connector or engine-A/T-ECU <A/T> connector

Q. Is the check result normal?

Check output line for open circuit.

Repair or replace.

STEP 11. Connector check: C-113 engine-ECU <M/T> connector or engine-A/T-ECU <A/T> connector

Q. Is the check result normal?

Go to Step 12 .

Repair or replace.

STEP 12. Check harness between B-106 (terminal No. 1) air flow sensor connector and C-113 (terminal No. 99) engine-ECU <M/T> connector or engine-A/T-ECU <A/T> connector.

Check output line for short circuit.

Q. Is the check result normal?

Go to Step 7 .

Repair.

STEP 13. Perform voltage measurement at B-106 air flow sensor connector.

Use special tool test harness (MB991709) to connect only terminal No. 1 and No. 4, and then measure at pick-up harness.
Ignition switch: ON
Voltage between terminal No. 1 and earth.

OK:
Ambient temperature at -20°C: 3.8 - 4.4 V
Ambient temperature at 0°C: 3.2 - 3.8 V
Ambient temperature at 20°C: 2.3 - 2.9 V
Ambient temperature at 40°C: 1.5 - 2.1 V
Ambient temperature at 60°C: 0.8 - 1.4 V
Ambient temperature at 80°C: 0.4 - 1.0 V

Q. Is the check result normal?

Go to Step 7 .

Go to Step 14 .

STEP 14. Connector check: C-113 engine-ECU <M/T> connector or engine-A/T-ECU <A/T> connector

Q. Is the check result normal?

Go to Step 15 .

Repair or replace.

STEP 15. Check harness between B-106 (terminal No. 1) air flow sensor connector and C-113 (terminal No. 99) engine-ECU <M/T> connector or engine-A/T-ECU <A/T> connector.

Check output line for damage.

Q. Is the check result normal?

Go to Step 7 .

Repair.
