Code No.C1458: Free-wheel Engage Switch System (Abnormal)
OPERATION
The free-wheel engage switch is turned ON when the free-wheel engage solenoid valve is activated and the condition is shifted to the 4WD condition. The power supply voltage is imposed to the free-wheel engage switch from the transfer-ECU, and when the free-wheel engage switch is turned ON, the power supply voltage from the transfer-ECU is grounded.
DIAGNOSIS CODE SET CONDITIONS
When the energizing condition to the free-wheel engage solenoid valve and the condition of free-wheel engage switch do not agree, code No.C1458 is set as the open circuit or the short circuit on the free-wheel engage switch system.
PROBABLE CAUSES
- Malfunction of the free-wheel engage switch
- Damaged harness wires and connectors
- Malfunction of the transfer-ECU
|
|
STEP 1. M.U.T.-III diagnosis code.
|
|
|
Check if the diagnosis code is set.
|
|
|
Q.
Is diagnosis code No.C1457 set?
|
|
|
 Refer to diagnosis code No.C1457: Free-wheel Engage Solenoid Valve System  .
|
|
|
|
|
|
 Go to Step 2.
|
|
|
|
|
|
STEP 2. M.U.T.-III data list.
|
|
|
Item 77: Free-wheel engage switch (Refer to data list reference table ).
|
|
|
Q.
Is the check result normal?
|
|
|
Intermittent malfunction (Refer to GROUP 00 - How to Cope with Intermittent Malfunction ).
|
|
|
|
|
|
Go to Step 3.
|
|
|
|
|
|
STEP 3. M.U.T.-III data list.
|
|
|
(1)Remove the free-wheel engage switch.
|
|
|
(2)Do not disconnect connector B-114.
|
|
|
(3)Turn the ignition switch to the ON position.
|
|
|
(4)Item 77: Free-wheel engage switch.
|
|
|
(5)When the free-wheel engage switch is released (OFF).
OK: M.U.T.-III display should be "OFF"
When the free-wheel engage switch is pressed (ON).
OK: M.U.T.-III display should be "ON"
|
|
|
Q.
Is the check result normal?
|
|
|
Go to Step 4.
|
|
|
|
|
|
Go to Step 5.
|
|
|
|
|
|
STEP 4. Check the free-wheel engage solenoid valve.
|
|
|
Refer to GROUP 26 - On-vehicle Service .
|
|
|
Q.
Is the check result normal?
|
|
|
Repair or replace the actuator assembly and free-wheel engage clutch (Refer to GROUP 26 - Differential Carrier and Free-wheel Clutch ).
|
|
|
|
|
|
Repair or replace the free-wheel engage solenoid valve and vacuum hoses (Refer to GROUP 26 - Solenoid Valve and Vacuum Hose ).
|
|
|
|
|
|
STEP 5. Check the free-wheel engage switch.
|
|
|
Refer to GROUP 26 - Differential Carrier and Free-wheel Clutch .
|
|
|
Q.
Is the check result normal?
|
|
|
Go to Step 6.
|
|
|
|
|
|
Replace the free-wheel engage switch (Refer to GROUP 26 - Differential Carrier and Free-wheel Clutch ).
|
|
|
|
|
|
STEP 6. Measure the voltage at freewheel engage switch connector B-114.
|
|
|
(1)Disconnect the connector, and measure the voltage between terminal No.2 and earth at the wiring harness side.
|
|
|
(2)Turn the ignition switch to the ON position.
OK: Approx. 10.5 V
|
|
|
Q.
Is the check result normal?
|
|
|
Go to Step 12.
|
|
|
|
|
|
Go to Step 7.
|
|
|
|
|
|
STEP 7. Measure the voltage at transfer-ECU connector D-123.
|
|
|
(1)Measure the voltage between terminal No.48 and earth at the ECU side.
|
|
|
(2)Transmission gear should be neutral position.
|
|
|
(3)Turn the ignition switch to the ON position.
OK:
- When the transfer shift lever position is 2H, voltage should measure approx. 10.5 V.
- When the transfer shift lever position is other than 2H, voltage should measure 1 V or less.
|
|
|
Q.
Is the check result normal?
|
|
|
Go to Step 10.
|
|
|
|
|
|
Go to Step 8.
|
|
|
|
|
|
STEP 8. Connector check: B-20, D-225 intermediate connector, B-114 free-wheel engage switch connector, D-123 transfer-ECU connector.
|
|
|
Check for the contact with terminals.
|
|
|
Q.
Is the check result normal?
|
|
|
Go to Step 9.
|
|
|
|
|
|
Repair the defective connector.
|
|
|
|
|
|
STEP 9. Check the harness between transfer-ECU connector D-123 terminal No.48 and free-wheel engage switch connector B-114 terminal No.2.
|
|
|
Check the output line for short circuit.
|
|
|
Q.
Is the check result normal?
|
|
|
Go to Step 15.
|
|
|
|
|
|
Repair the wiring harness.
|
|
|
|
|
|
STEP 10. Connector check: B-20, D-225 intermediate connector, B-114 free-wheel engage switch connector, D-123 transfer-ECU connector.
|
|
|
Check for the contact with terminals.
|
|
|
Q.
Is the check result normal?
|
|
|
Go to Step 11.
|
|
|
|
|
|
Repair the defective connector.
|
|
|
|
|
|
STEP 11. Check the harness between transfer-ECU connector D-123 terminal No.48 and free-wheel engage switch connector B-114 terminal No.2.
|
|
|
Check the output line for open circuit.
|
|
|
Q.
Is the check result normal?
|
|
|
Go to Step 15.
|
|
|
|
|
|
Repair the wiring harness.
|
|
|
|
|
|

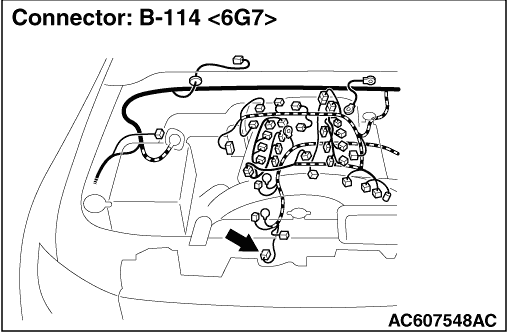

STEP 12. Measure the resistance at free-wheel engage switch connector B-114.
|
|
|
Disconnect the connector, and measure the resistance between terminal No.1 and earth at the wiring harness side.
|
|
|
OK: Continuity (2 Ω or less)
|
|
|
Q.
Is the check result normal?
|
|
|
Go to Step 15.
|
|
|
|
|
|
Go to Step 13.
|
|
|
|
|
|

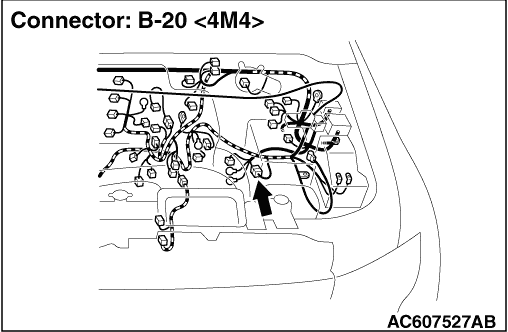

STEP 13. Connector check: B-20 intermediate connector, B-114 free-wheel engage switch connector.
|
|
|
Q.
Is the check result normal?
|
|
|
Go to Step 14.
|
|
|
|
|
|
Repair the defective connector.
|
|
|
|
|
|
STEP 14. Check the harness between free-wheel engage switch connector B-114 terminal No.1 and earth.
|
|
|
Check the earth line for open circuit.
|
|
|
Q.
Is the check result normal?
|
|
|
Go to Step 15.
|
|
|
|
|
|
Repair the wiring harness.
|
|
|
|
|
|
STEP 15. M.U.T.-III data list.
|
|
|
Item 77: Free-wheel engage switch (Refer to data list reference table ).
|
|
|
Q.
Is the check result normal?
|
|
|
Intermittent malfunction (Refer to GROUP 00 - How to Cope with Intermittent Malfunction ).
|
|
|
|
|
|
Replace the transfer-ECU.
|
|
|
|
)
)
)
)
)
)
)
)
)
