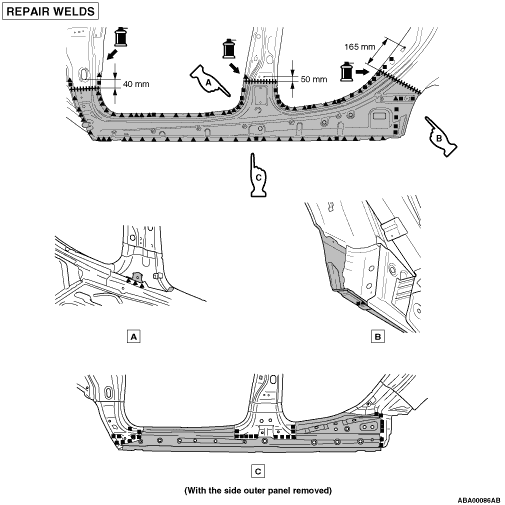

| note | ) Partial replacement is possible depending on the range of damage. To reinforce strength of the side sill reinforcement, cut it by displacing 50 mm from the butt welding area with the side outer panel. |
NOTE ON REPAIR WORK |
REMOVAL |
) |
When removing the side sill reinforcement, remove the rear wheel house panel front outer. |
INSTALLATION |
) |
When installing new side sill reinforcement parts, push them from the rear of the vehicle toward the front of the vehicle. After installing the side sill reinforcement, install the rear wheelhouse panel front outer. |
