REAR COMBINATION LAMP
XENON TYPE

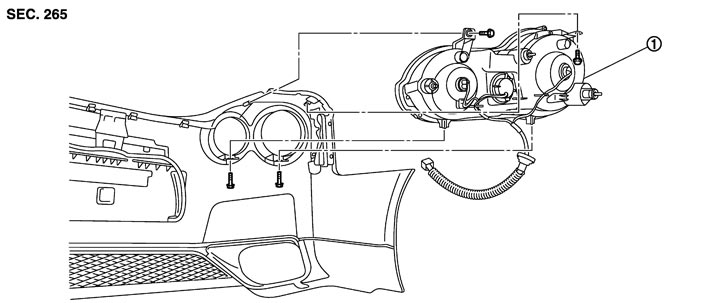

Exploded View
Removal and Installation
■ CAUTION ■
Disconnect the battery negative terminal or remove the fuse.
REMOVAL- 1.Remove the fascia rear bumper center. Refer to Exploded View.
- 2.Remove the rear bumper fascia. Refer to Exploded View.
- 3.Remove the rear combination lamp mounting bolts.
- 4.Disconnect the rear side marker lamp connector.
- 5.Remove the rear combination lamp.
INSTALLATIONInstall in the reverse order of removal.
Replacement
■ CAUTION ■
- Disconnect the battery negative terminal or remove the fuse.
- Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
- Never touch bulb by hand while it is lit or right after being turned off.
- Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect the performance of lamp. When replacing bulb, be sure to replace it with new one.

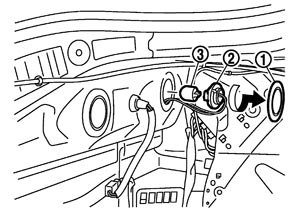

REAR TURN SIGNAL LAMP BULB- 1.Remove the trunk lid finisher. Refer to Exploded View.
- 2.Remove the rubber cover (1).
- 3.Turn the rear turn signal lamp bulb socket (2) counterclockwise and unlock it.
- 4.Remove the bulb (3) from the rear turn signal lamp bulb socket.

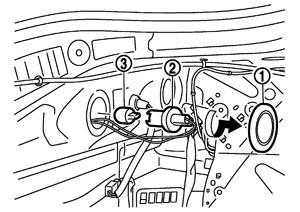

BACK-UP LAMP BULB- 1.Remove the trunk lid finisher. Refer to Exploded View.
- 2.Remove the rubber cover (1).
- 3.Turn the back-up lamp bulb socket (2) counterclockwise and unlock it.
- 4.Remove the bulb (3) from the back-up lamp bulb socket.
