HIGH-MOUNTED STOP LAMP
XENON TYPE

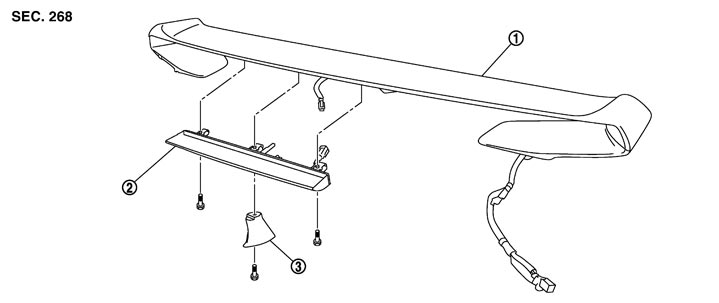

Exploded View
|
1. |
Rear wing |
2. |
High-mounted stop lamp |
3. |
Center leg bracket |
Removal and Installation
REMOVAL■ CAUTION ■
Disconnect the battery negative terminal or the remove the fuse.
- 1.Remove the rear wing. Refer to Exploded View.
- 2.Remove the center leg bracket.
- 3.Remove the high-mounted stop lamp mounting screw. And then cut the two-sided tape by the any appropriate tool (A).
- 4.Disconnect the connector. And then remove the high-mounted stop lamp from the rear wing.
INSTALLATIONInstall in the reverse order of removal.
