LICENSE PLATE LAMP
XENON TYPE

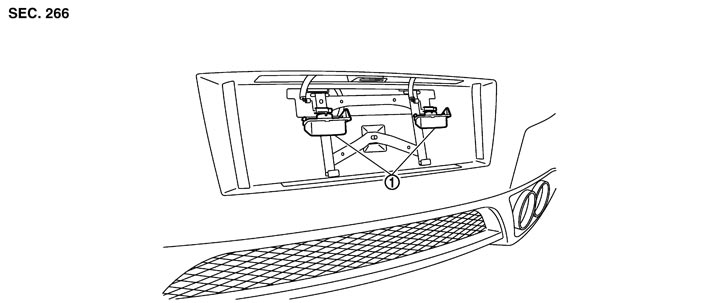

Exploded View
|
1. |
License plate lamp |
|
|
|
|
Removal and Installation
■ CAUTION ■
Disconnect the battery negative terminal or remove the fuse.
REMOVAL- 1.Remove the license plate lamp in numerical order shown in the figure.
- 2.Disconnect the connector.
- 3.Remove license plate lamp.
INSTALLATION- 1.Connect the connector.
- 2.Fix the pawl side. And then push the resin clip side.
Replacement
■ CAUTION ■
- Disconnect the battery negative terminal or remove the fuse.
- Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
- Never touch bulb by hand while it is lit or right after being turned off.
- Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect the performance of lamp. When replacing bulb, be sure to replace it with new one.
LICENSE PLATE LAMP BULB- 1.Remove license plate lamp. Refer to Exploded View.
- 2.Turn the bulb socket (1) counterclockwise and unlock it.
- 3.Remove the bulb (2) from the socket.
