BACK-UP LAMP SYSTEM

XENON TYPE

System Diagram

OUTLINE

Back-up lamp is controlled by back-up lamp relay control function of TCM.

BACK-UP LAMP OPERATION

Back-up lamp ON condition.

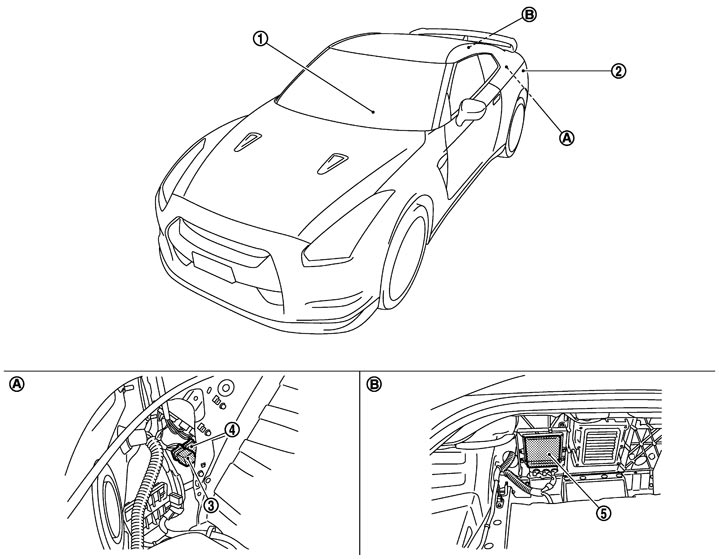

1.	Control device	2.	Back-up lamp	3.	TCM relay
4.	Back-up lamp relay	5.	TCM
A.	Inside of rear wheel house finisher (LH)	B.	Inside of trunk front finisher

Part		Description
TCM		Detects the control device condition. Judges the back-up lamp relay ON/OFF by shift lever position status.
Control device		Refer to Main Device (GT-R certified NISSAN dealer).
