REAR SIDE MARKER LAMP
XENON TYPE

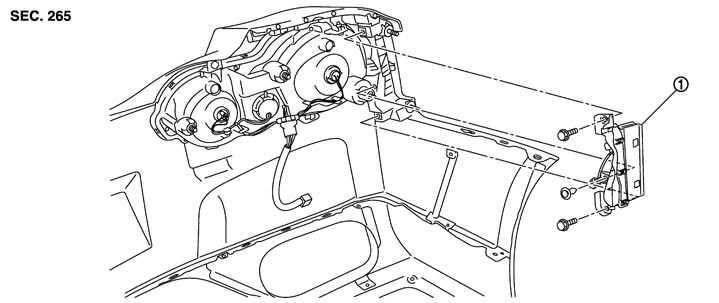

Exploded View
|
1. |
Rear side marker lamp |
|
|
|
|
Removal and Installation
REMOVAL■ CAUTION ■
Disconnect the battery negative terminal or remove the fuse.
- 1.Remove the rear bumper fascia. Refer to Exploded View.
- 2.Disconnect the rear side marker lamp connector.
- 3.Remove the rear side marker lamp mounting bolts and clip.
- 4.Remove the rear side marker lamp.
INSTALLATIONInstall in the reverse order of removal.
