PREPARATION

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number (Kent-Moore No.) Tool name		Description
ST3127S000 (J-25765-A) Preload gauge		Inspecting steering wheel turning torque, pinion rotating torque, and ball joint rotating torque
ST27180001 (J-25726-A) Steering wheel puller		Removing steering wheel
KV48103400 (　　—　　) Preload adapter		Inspecting rotating torque
ST35300000 (　　—　　) Drift a: 45.1 mm (1.776 in) dia. b: 59.0 mm (2.323 in) dia.		Installing oil pump oil seal

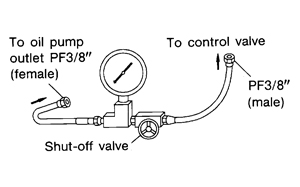

KV48103500 (J-26357) Oil pressure gauge		Measuring oil pump relief pressure

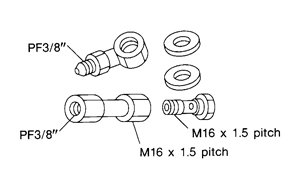

KV48102500 (J-33914) Oil pressure gauge adapter		Measuring oil pump relief pressure

Tool name		Description
Power tool		Loosening bolts and nuts
