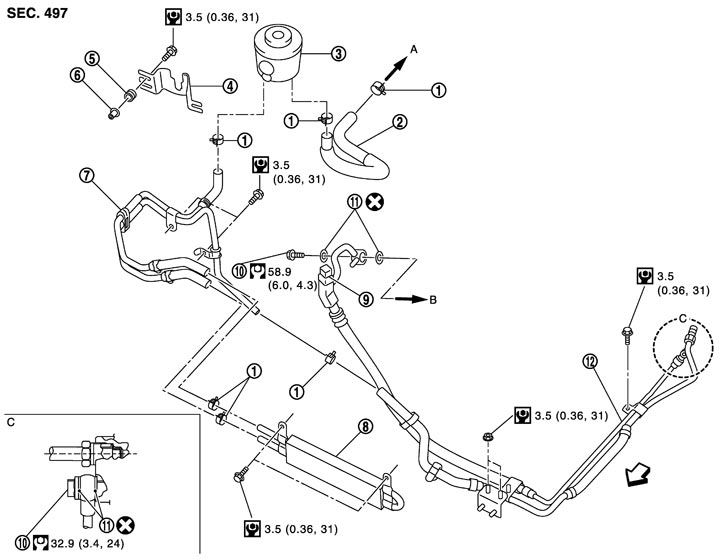

HYDRAULIC LINE
|
1. |
Clamp |
2. |
Suction hose |
3. |
Reservoir tank |
|
4. |
Reservoir tank bracket |
5. |
Bushing |
6. |
Collar |
|
7. |
Return hose |
8. |
Oil cooler |
9. |
Pressure sensor |
|
10. |
Eye bolt |
11. |
Copper washer |
12. |
High pressure piping and low pressure piping |
|
A. |
To power steering oil pump suction piping. |
B. |
To power steering oil pump. |
||
 : Vehicle front |
|||||
|
Refer to Components for symbols in the figure. |
|||||
