Nissan GT-R (R35) · Service Manual ENGINE

COOLING FAN CONTROL

VR38

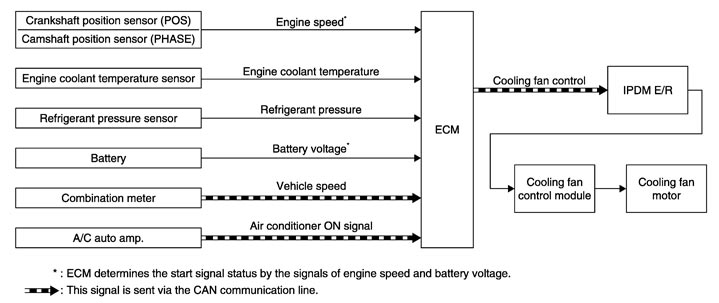

System Diagram

System Description


 INPUT/OUTPUT SIGNAL CHART

Sensor
Input signal to ECM
ECM function
Actuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)
Engine speed*1
Cooling fan control
IPDM E/R

Cooling fan control module

Cooling fan motor
Engine coolant temperature sensor
Engine coolant temperature
Refrigerant pressure sensor
Refrigerant pressure
Battery
Battery voltage*1
Combination meter
Vehicle speed*2
A/C auto amp.
Air conditioner ON signal*2
*1: The ECM determines the start signal status by the signals of engine speed and battery voltage.
*2: This signal is sent to ECM via the CAN communication line.


 SYSTEM DESCRIPTION

ECM controls cooling fan speed corresponding to vehicle speed, engine coolant temperature, air conditioner ON signal, refrigerant pressure.
Cooling fan control signal is sent to IPDM E/R from ECM by CAN communication line. Then, IPDM E/R sends ON/OFF pulse duty signal to cooling fan control module. Corresponding to this ON/OFF pulse duty signal, cooling fan control module gives cooling fan motor operating voltage to cooling fan motors. Cooling fan speed is controlled by duty cycle of cooling fan motor operating voltage sent from cooling fan control module.
NOTE:
To cool off the engine, the cooling fan may continue to say ON for two minutes after turning OFF the ignition switch.

Component Parts Location




1.
Air cut solenoid valve relay
2.
Recirculation valve (bank 1)
3.
Refrigerant pressure sensor
4.
Mass air flow sensor (with intake air temperature sensor) (bank 1)
5.
Power steering pressure sensor
6.
EVAP canister purge volume control solenoid valve
7.
Cooling fan motor
8.
Cooling fan control module
9.
Intake valve timing control solenoid valve
10.
Turbocharger boost control solenoid valve
11.
Mass air flow sensor (with intake air temperature sensor) (bank 2)
12.
Recirculation valve (bank 2)
13.
Turbocharger boost sensor (bank 2)
14.
Cooling fan relay-1
15.
Cooling fan relay-2
16.
Electric throttle control actuator (bank 2)
17.
Ignition coil (with power transistor) and spark plug (bank 2)
18.
Camshaft position sensor (PHASE) (bank 2)
19.
Air cut solenoid valve (bank 2)
20.
Crankshaft position sensor (POS)
21.
Fuel injector (bank 2)
22.
Knock sensor
23.
Engine oil temperature sensor
24.
Fuel injector (bank 1)
25.
Engine coolant temperature sensor
26.
A/F sensor 1 (bank 1)
27.
Camshaft position sensor (PHASE) (bank 1)
28.
Air cut solenoid valve (bank 1)
29.
Manifold absolute pressure sensor
30.
Ignition coil (with power transistor) and spark plug (bank 1)
31.
Electric throttle control actuator (bank 1)
32.
EVAP service port
33.
Turbocharger boost sensor (bank 1)
34.
IPDM E/R
35.
Air pump cleaner
36.
Air pump
37.
Air pump relay








1.
Mass air flow sensor (with intake air temperature sensor) (bank 1)
2.
Mass air flow sensor (with intake air temperature sensor) (bank 2)



:Vehicle front








1.
Manifold absolute pressure sensor
2.
Electric throttle control actuator (bank 1)
3.
Turbocharger boost sensor (bank 1)
4.
Turbocharger boost sensor (bank 2)
5.
Electric throttle control actuator (bank 2)



:Vehicle front








1.
Intake valve timing control solenoid valve (bank1)
2.
Intake valve timing control solenoid valve (bank2)



:Vehicle front








1.
Cooling fan relay-2
2.
Cooling fan relay-1
3.
Cooling fan motor-1
4.
Cooling fan control module-1
5.
Cooling fan control module-2
6.
Cooling fan motor-2

:Vehicle front








1.
Power steering pressure sensor
2.
Refrigerant pressure sensor



:Vehicle front








1.
EVAP service port
2.
EVAP canister purge volume control solenoid valve
3.
EVAP canister
4.
EVAP control system pressure sensor
5.
EVAP canister vent control valve



:Vehicle front








1.
Ignition coil No.1 (with power transistor)
2.
Ignition coil No.3 (with power transistor)
3.
Ignition coil No.5 (with power transistor)
4.
Condenser
5.
Ignition coil No.6 (with power transistor)
6.
Ignition coil No.4 (with power transistor)
7.
Ignition coil No.2 (with power transistor)
8.
Fuel injector No.1
9.
Fuel injector No.3
10.
Fuel injector No.5
11.
Fuel pressure regulator
12.
Fuel injector No.6
13.
Fuel injector No.4
14.
Fuel injector No.2



:Vehicle front








1.
Camshaft position sensor (PHASE) (bank 1)
2.
Camshaft position sensor (PHASE) (bank 2)



:Vehicle front








1.
Engine oil temperature sensor
2.
PCV valve



:Vehicle front








1.
Crankshaft position sensor (POS)
2.
Knock sensor (bank1)
3.
Knock sensor (bank2)

:Vehicle front








1.
Boost control actuator (bank1)
2.
Turbocharger boost control solenoid valve
3.
Boost control actuator (bank2)

:Vehicle front










1.
Heated oxygen sensor 2 (bank 2)
2.
Heated oxygen sensor 2 (bank 1)



:Vehicle front








1.
A/F sensor 1 (bank 1) harness connector
2.
A/F sensor 1 (bank 2) harness connector



:Vehicle front








1.
A/F sensor 1 (bank 2)
2.
A/F sensor 1 (bank 1)
3.
Fuel pump control module (FPCM)

:Vehicle front








1.
Sub fuel pump harness connector
2.
Main fuel gauge fuel filter fuel pump assembly harness connector
3.
Sub fuel pump
4.
Main fuel gauge fuel filter fuel pump assembly
5.
Fuel pump



:Vehicle front








1.
ECM
2.
Brake switch
3.
Stop lamp switch
4.
Accelerator pedal position sensor








1.
ASCD steering switch
2.
RESUME/ACCELERATE switch
3.
SET/COAST switch
4.
CANCEL switch
5.
MAIN switch






1.
Air cut solenoid valve (bank 2)
2.
Air cut solenoid valve (bank 1)
3.
Engine coolant temperature sensor
4.
Air pump
5.
Secondary air injection system mass air flow sensor



:Vehicle front








1.
Air cut solenoid valve relay
2.
Air pump relay
3.
Air pump cleaner
4.
IPDM E/R





Component Description


Component
Reference
Camshaft position sensor (PHASE)
Description (GT-R certified NISSAN dealer)
Crankshaft position sensor (POS)
Description (GT-R certified NISSAN dealer)
Cooling fan control module
Description (GT-R certified NISSAN dealer)
Cooling fan motor
Description (GT-R certified NISSAN dealer)
Engine coolant temperature sensor
Description (GT-R certified NISSAN dealer)
Refrigerant pressure sensor
Description (GT-R certified NISSAN dealer)
