Nissan GT-R (R35) · Service Manual ENGINE

INTAKE VALVE TIMING CONTROL

VR38

System Diagram

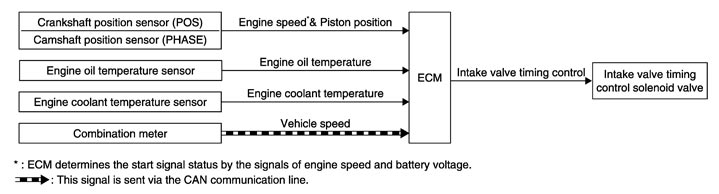

System Description


 INPUT/OUTPUT SIGNAL CHART

Sensor
Input signal to ECM
ECM function
Actuator
Crankshaft position sensor (POS)
Engine speed and piston position
Intake valve timing control
Intake valve timing control solenoid valve
Camshaft position sensor (PHASE)
Engine oil temperature sensor
Engine oil temperature
Engine coolant temperature sensor
Engine coolant temperature
Combination meter
Vehicle speed*
*: This signal is sent to the ECM via the CAN communication line


 SYSTEM DESCRIPTION

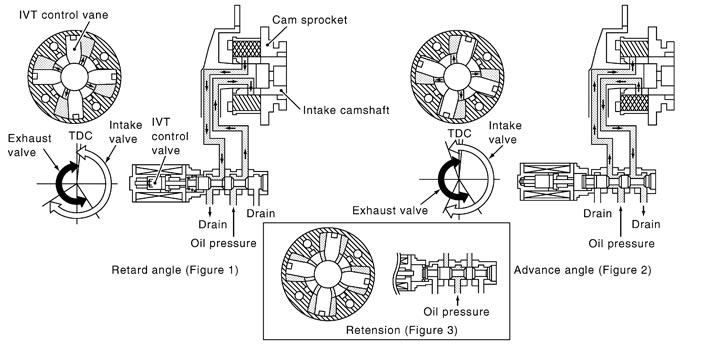

This mechanism hydraulically controls cam phases continuously with the fixed operating angle of the intake valve.
The ECM receives signals such as crankshaft position, camshaft position, engine speed, and engine coolant temperature. Then, the ECM sends ON/OFF pulse duty signals to the intake valve timing (IVT) control solenoid valve depending on driving status. This makes it possible to control the shut/open timing of the intake valve to increase engine torque in low/mid speed range and output in high-speed range.

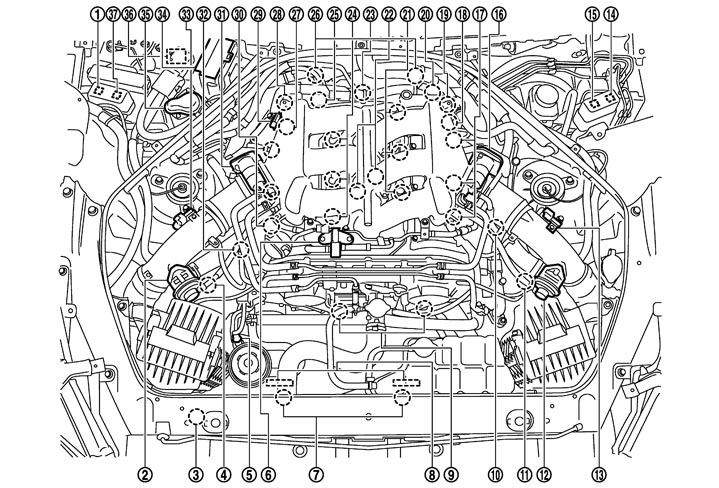

Component Parts Location




1.
Air cut solenoid valve relay
2.
Recirculation valve (bank 1)
3.
Refrigerant pressure sensor
4.
Mass air flow sensor (with intake air temperature sensor) (bank 1)
5.
Power steering pressure sensor
6.
EVAP canister purge volume control solenoid valve
7.
Cooling fan motor
8.
Cooling fan control module
9.
Intake valve timing control solenoid valve
10.
Turbocharger boost control solenoid valve
11.
Mass air flow sensor (with intake air temperature sensor) (bank 2)
12.
Recirculation valve (bank 2)
13.
Turbocharger boost sensor (bank 2)
14.
Cooling fan relay-1
15.
Cooling fan relay-2
16.
Electric throttle control actuator (bank 2)
17.
Ignition coil (with power transistor) and spark plug (bank 2)
18.
Camshaft position sensor (PHASE) (bank 2)
19.
Air cut solenoid valve (bank 2)
20.
Crankshaft position sensor (POS)
21.
Fuel injector (bank 2)
22.
Knock sensor
23.
Engine oil temperature sensor
24.
Fuel injector (bank 1)
25.
Engine coolant temperature sensor
26.
A/F sensor 1 (bank 1)
27.
Camshaft position sensor (PHASE) (bank 1)
28.
Air cut solenoid valve (bank 1)
29.
Manifold absolute pressure sensor
30.
Ignition coil (with power transistor) and spark plug (bank 1)
31.
Electric throttle control actuator (bank 1)
32.
EVAP service port
33.
Turbocharger boost sensor (bank 1)
34.
IPDM E/R
35.
Air pump cleaner
36.
Air pump
37.
Air pump relay

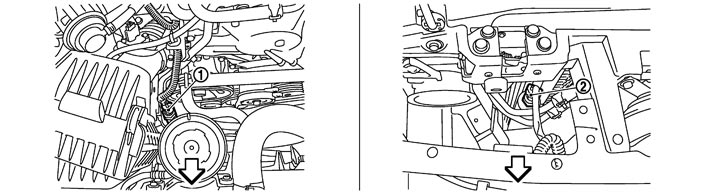

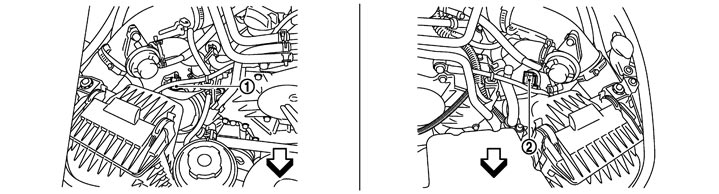

1.
Mass air flow sensor (with intake air temperature sensor) (bank 1)
2.
Mass air flow sensor (with intake air temperature sensor) (bank 2)



:Vehicle front

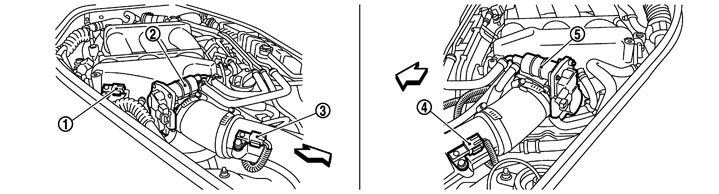

1.
Manifold absolute pressure sensor
2.
Electric throttle control actuator (bank 1)
3.
Turbocharger boost sensor (bank 1)
4.
Turbocharger boost sensor (bank 2)
5.
Electric throttle control actuator (bank 2)



:Vehicle front

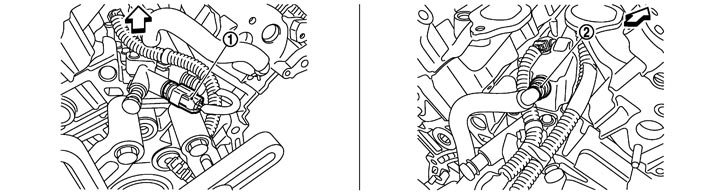

1.
Intake valve timing control solenoid valve (bank1)
2.
Intake valve timing control solenoid valve (bank2)



:Vehicle front

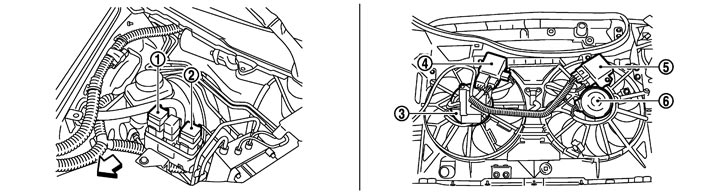

1.
Cooling fan relay-2
2.
Cooling fan relay-1
3.
Cooling fan motor-1
4.
Cooling fan control module-1
5.
Cooling fan control module-2
6.
Cooling fan motor-2

:Vehicle front

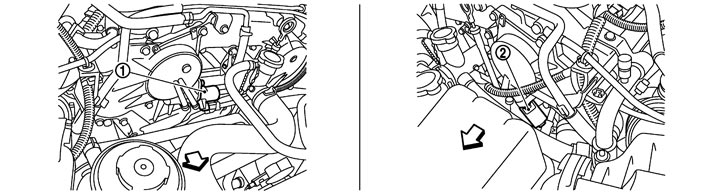

1.
Power steering pressure sensor
2.
Refrigerant pressure sensor



:Vehicle front








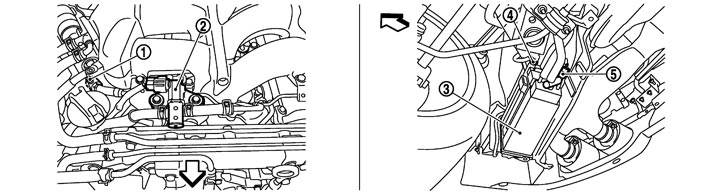

1.
EVAP service port
2.
EVAP canister purge volume control solenoid valve
3.
EVAP canister
4.
EVAP control system pressure sensor
5.
EVAP canister vent control valve



:Vehicle front

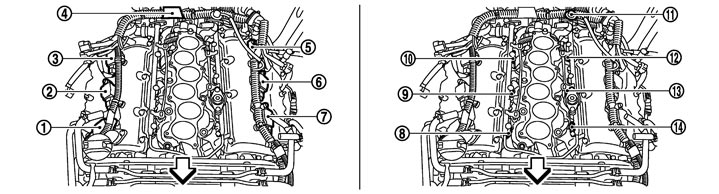

1.
Ignition coil No.1 (with power transistor)
2.
Ignition coil No.3 (with power transistor)
3.
Ignition coil No.5 (with power transistor)
4.
Condenser
5.
Ignition coil No.6 (with power transistor)
6.
Ignition coil No.4 (with power transistor)
7.
Ignition coil No.2 (with power transistor)
8.
Fuel injector No.1
9.
Fuel injector No.3
10.
Fuel injector No.5
11.
Fuel pressure regulator
12.
Fuel injector No.6
13.
Fuel injector No.4
14.
Fuel injector No.2



:Vehicle front

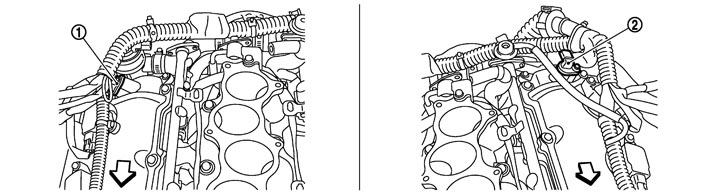

1.
Camshaft position sensor (PHASE) (bank 1)
2.
Camshaft position sensor (PHASE) (bank 2)



:Vehicle front








1.
Engine oil temperature sensor
2.
PCV valve



:Vehicle front

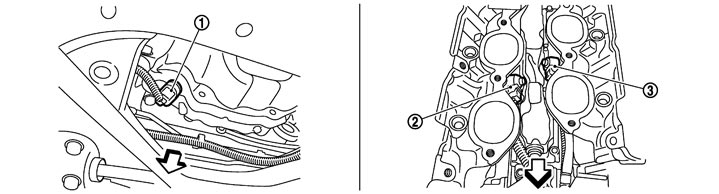

1.
Crankshaft position sensor (POS)
2.
Knock sensor (bank1)
3.
Knock sensor (bank2)

:Vehicle front

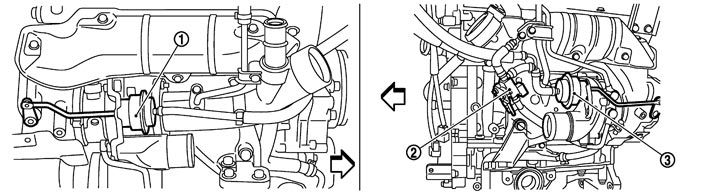

1.
Boost control actuator (bank1)
2.
Turbocharger boost control solenoid valve
3.
Boost control actuator (bank2)

:Vehicle front

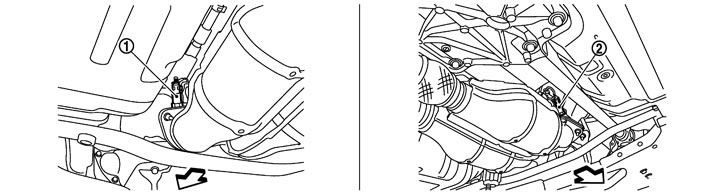

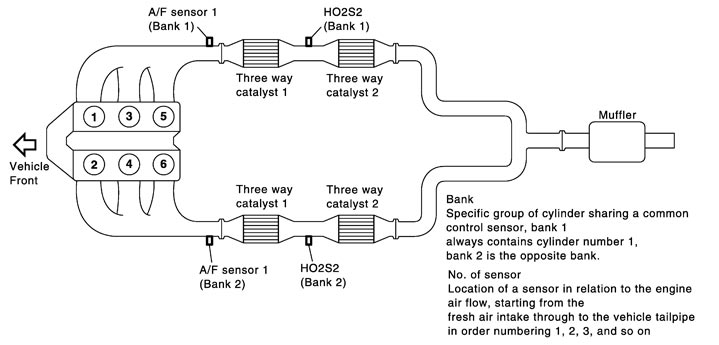

1.
Heated oxygen sensor 2 (bank 2)
2.
Heated oxygen sensor 2 (bank 1)



:Vehicle front








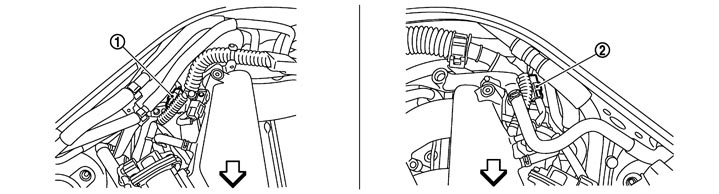

1.
A/F sensor 1 (bank 1) harness connector
2.
A/F sensor 1 (bank 2) harness connector



:Vehicle front








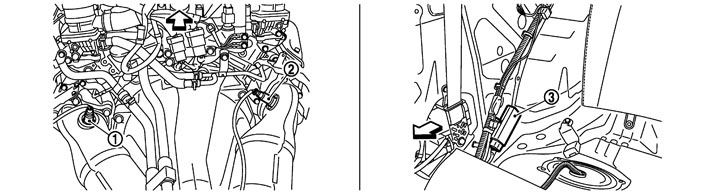

1.
A/F sensor 1 (bank 2)
2.
A/F sensor 1 (bank 1)
3.

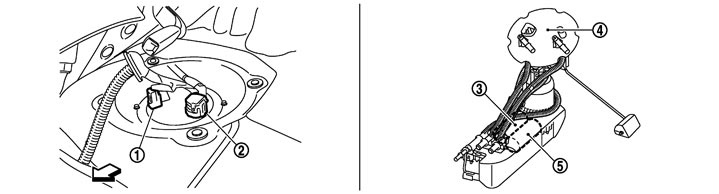

Fuel pump control module (FPCM)

:Vehicle front








1.
Sub fuel pump harness connector
2.
Main fuel gauge fuel filter fuel pump assembly harness connector
3.
Sub fuel pump
4.
Main fuel gauge fuel filter fuel pump assembly
5.
Fuel pump



:Vehicle front

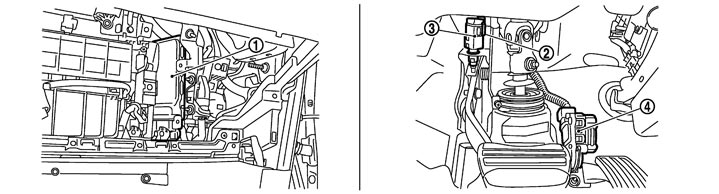

1.
ECM
2.
Brake switch
3.
Stop lamp switch
4.
Accelerator pedal position sensor

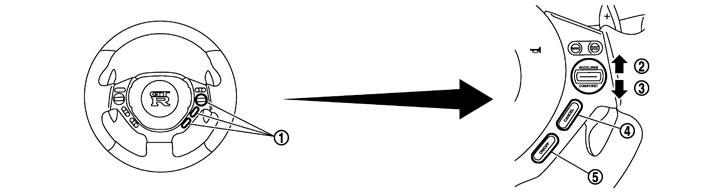

1.
ASCD steering switch
2.
RESUME/ACCELERATE switch
3.
SET/COAST switch
4.
CANCEL switch
5.
MAIN switch

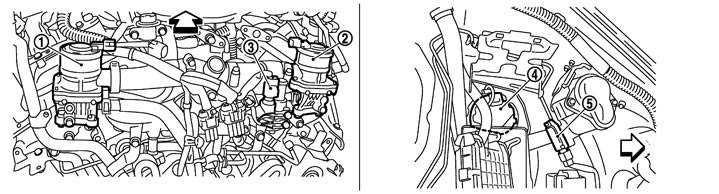

1.
Air cut solenoid valve (bank 2)
2.
Air cut solenoid valve (bank 1)
3.
Engine coolant temperature sensor
4.
Air pump
5.
Secondary air injection system mass air flow sensor



:Vehicle front

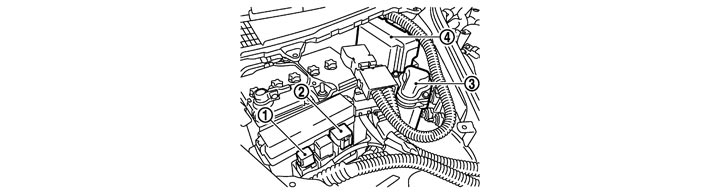

1.
Air cut solenoid valve relay
2.
Air pump relay
3.
Air pump cleaner
4.
IPDM E/R





Component Description


Component
Reference
Camshaft position sensor (PHASE)
Description (GT-R certified NISSAN dealer)
Crankshaft position sensor (POS)
Description (GT-R certified NISSAN dealer)
Engine coolant temperature sensor
Description (GT-R certified NISSAN dealer)
Intake valve timing control solenoid valve
Description (GT-R certified NISSAN dealer)
