PREPARATION
VR38
Special Service Tools
NOTEļ¼
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
|
Tool number (Kent-Moore No.) Tool name |
|
Description |
|

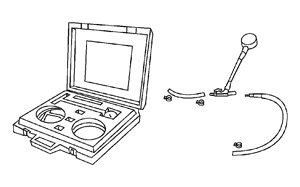

(J-44321) Fuel pressure gauge kit |
|
Checks fuel pressure |
Commercial Service Tools
|
Tool name (Kent-Moore No.) |
|
Description |
|

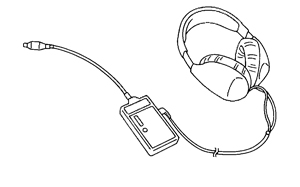

Leak detector i.e.: (J-41416) |
|
Locates the EVAP leak |
|
EVAP service port adapter i.e.: (J-41413-OBD) |
|
Applys positive pressure through EVAP service port |
|
Fuel filler cap adapter i.e.: (MLR-8382) |
|
Checks fuel tank vacuum relief valve opening pressure |
|

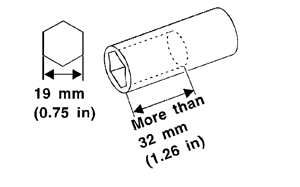

Socket wrench |
|
Removes and installs engine coolant temperature sensor |
|

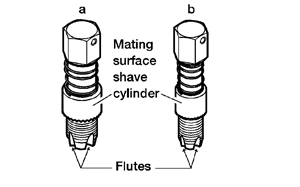

Oxygen sensor thread cleaner i.e.: (J-43897-18) (J-43897-12) |
|
Reconditions the exhaust system threads before installing a new oxygen sensor. Use with anti-seize lubricant shown below. a: 18 mm diameter with pitch 1.5 mm for Zirconia Oxygen Sensor b: 12 mm diameter with pitch 1.25 mm for Titania Oxygen Sensor |
|
Anti-seize lubricant i.e.: (PermatexTM 133AR or equivalent meeting MIL specification MIL-A-907) |
|
Lubricates oxygen sensor thread cleaning tool when reconditioning exhaust system threads. |
