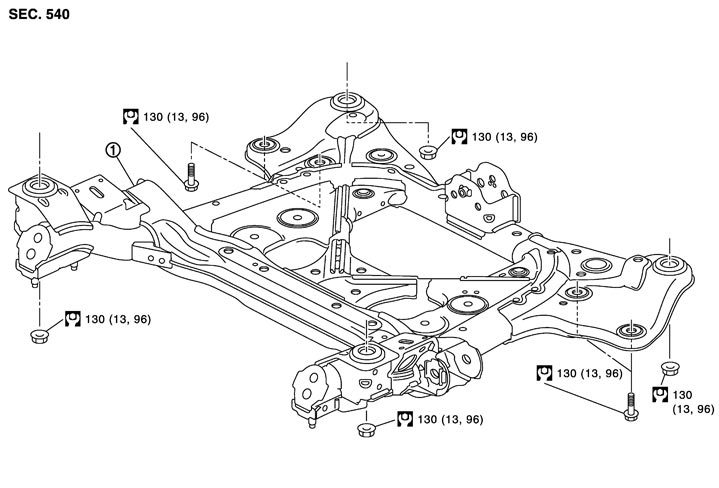

FRONT SUSPENSION MEMBER

1.Remove tire with power tool.

2.At first, remove the following parts as a set.
• Engine and front final drive: refer to Exploded View (GT-R certified NISSAN dealer).
• Drive shaft: refer to Exploded View (GT-R certified NISSAN dealer).

3.Remove the following parts.
• Steering knuckle and wheel hub and bearing assembly: refer to Exploded View.
• Steering gear assembly and hydraulic line: refer to Exploded View, Exploded View.
• Stabilizer bar and stabilizer connecting rod: refer to Exploded View.
• Transverse link: refer to Exploded View.
• Engine mount insulator: refer to Exploded View (GT-R certified NISSAN dealer).

Note the following, and install in the reverse order of removal.

• Perform final tightening of bolts and nuts at the vehicle installation position (rubber bushing), under unladen condition with tires on level ground.

Check the front suspension member for significant deformation, cracks and damages. Replace if necessary.

1.Check wheel sensor harness connector for proper connection. Refer to Exploded View (GT-R certified NISSAN dealer).

2.Check wheel alignment. Refer to Adjustment.

3.Adjust the neutral position of the steering angle sensor. Refer to Special Repair Requirement (GT-R certified NISSAN dealer).
