METER SYSTEM

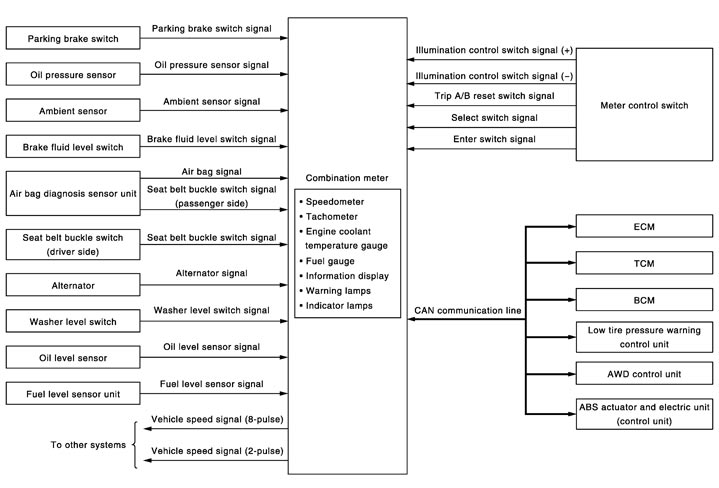

• The combination meter receives the signals that are required to control the operation of each meter gauge, indicator lamp/warning lamp, and information display from each unit, switch, and sensor.
• The combination meter is equipped with the drive computer function. Using the signal obtained from each unit, switch, and sensor, the combination meter displays warnings and information to the information display.
• The combination meter incorporates a buzzer function that sounds an audible alarm with the integrated buzzer device. Refer to System Description for details.
• The combination meter integrates the meter circuit check function, the dot matrix check function that checks the information display operation, and the segment check function that checks the shift position indicator operation.
• The combination meter integrates the diagnosis function, and it can perform a diagnosis using CONSULT‐III.

System		Description	Signal source
Meter gauges	Speedometer	Receives the vehicle speed signal, and indicates the vehicle speed.	ABS actuator and electric unit (control unit)
	Tachometer	Receives the engine speed signal, and indicates the engine speed.	ECM
	Fuel gauge	Receives the fuel level sensor signal, and indicates the remaining fuel level.	Fuel level sensor unit
	Engine coolant temperature gauge	Receives the engine coolant temperature signal, and indicates the engine coolant temperature.	ECM
Shift position indicator	Shift position indicator	Receives the shift position signal, and displays the shift position.	TCM
Oil pressure warning lamp	Oil pressure warning lamp	Receives the oil pressure sensor signal, and illuminates the lamp.	Oil pressure sensor
Up-shift indicator	Up-shift indicator	Receives the engine speed signal and shift position signal (manual mode status), and illuminates/turns off/blinks the indicator.	ECM
			TCM
Master warning lamp	Master warning lamp	Illuminates the lamp according to warning output on information display.	—
Information display	Instantaneous fuel consumption display	Calculates the instantaneous fuel consumption based on received vehicle speed signal and fuel consumption monitor signal, and displays the result.	ECM
			ABS actuator and electric unit (control unit)
	Vehicle speed display	Based on the received vehicle speed signal, displays the vehicle speed.	ABS actuator and electric unit (control unit)
	CRUISE control system status display	Based on the received ASCD status signal, displays the CRUISE control system setting status.	ECM
Information display	Average fuel consumption display	Based on the received vehicle speed signal and fuel consumption monitor signal, calculates the average fuel consumption from the previous reset to the next reset, and displays the result.	ECM
			ABS actuator and electric unit (control unit)
	Average vehicle speed display	Calculates average vehicle speed in a reset-to-reset interval based on received vehicle speed signal and displays it.	ABS actuator and electric unit (control unit)
	Travel time display	Displays the accumulated key switch ON time from a previous reset to the next reset.	—
	Travel distance display	Calculates accumulated travel distance in a reset-to-reset interval based on received vehicle speed signal and displays it.	ABS actuator and electric unit (control unit)
	Possible driving distance display	Based on the received fuel consumption monitor signal, vehicle speed signal, and fuel level sensor signal, calculates the possible driving distance, and displays the result.	ECM
			ABS actuator and electric unit (control unit)
			Fuel level sensor unit
	Ambient temperature display	Based on the received ambient sensor signal, corrects the ambient temperature value, and displays the result.	Ambient sensor
	Illumination control display	Based on the received illumination control switch signal, displays the illumination status.	Meter control switch
	Travel time interruption display	Displays a warning of duration after IGN ON. (If enabled)	—
	Low outside temperature display	Based on the ambient sensor signal, displays a warning when the ambient temperature becomes 3°C (37 °F) or less. (If enabled)	Ambient sensor
	Engine oil maintenance display	The distance for engine oil replacement can be set.	—
	Engine oil maintenance warning display	Displays a warning when the arbitrarily set engine oil replacement distance is reached.	—
	Engine oil level normal display	Based on the received oil level sensor signal, displays that the engine oil level is at a normal value.	Oil level sensor
	Engine oil level display	Based on the received oil level sensor signal, displays the engine oil level.	Oil level sensor
	Engine oil level warning display	Based on the received oil level sensor signal, displays a warning on engine oil level.	Oil level sensor
	Transmission oil maintenance display	The distance for transmission oil replacement can be set.	—
	Transmission oil maintenance warning display	Displays a warning when the arbitrarily set transmission oil replacement distance is reached.	—
	Oil filter maintenance display	The distance for oil filter replacement can be set.	—
	Oil filter maintenance warning display	Displays a warning when the arbitrarily set oil filter replacement distance is reached.	—
	Tire maintenance display	The distance for tire replacement can be set.	—
	Tire maintenance warning display	Displays a warning when the arbitrarily set tire replacement distance is reached.	—
	Other maintenance display	The replacement distance for the arbitrarily set parts can be set.	—
	Other maintenance warning display	Displays a warning when the arbitrarily set parts replacement distance is reached.	—
Information display	Door warning display	Based on the received door switch signal, displays a warning that a door is ajar.	BCM
	Trunk warning display	Based on the received trunk switch signal, displays a warning that the trunk is ajar.	BCM
	Parking brake release warning display	Based on the received parking brake switch signal and vehicle speed signal, displays a warning that the parking brake is not released.	Parking brake switch
			ABS actuator and electric unit (control unit)
	Low fuel warning display	Receives the fuel level sensor signal, and displays a warning if the fuel level decreases to approximately 11 (3 US gal, 2-2/5 lmp gal) or less.	Fuel level sensor unit
	Low washer fluid warning display	Based on the received washer level switch signal, displays a warning for washer level.	Washer level switch
	Engine oil level sensor abnormality warning display	Based on the received oil level sensor signal, displays the engine oil level sensor malfunction warning.	Oil level sensor
	Shift lever position warning display	Based on the received shift lever position warning display signal, displays the shift lever position warning.	TCM
	Shift “ P ” warning display	Based on the received shift lever position check display signal, issues a warning to change the shift position to P range.	TCM
	Transmission system check display	Based on the received transmission system check display signal, displays that the transmission system check is in progress.	TCM
	Run-flat tire warning display	Based on the received run-flat tire warning display signal, displays a warning that the tire is punctured.	Low tire pressure warning control unit
	Transmission clutch high temperature warning display	Based on the received transmission clutch high temperature warning display signal, displays a warning that the transmission clutch temperature is high.	TCM
	Transmission oil high temperature warning display	Based on the received transmission oil high temperature warning display signal, displays a warning that the transmission oil temperature is high.	TCM
	Low tire pressure warning display	Based on the received low tire pressure warning display signal, displays a warning that the tire internal pressure is low.	Low tire pressure warning control unit
	AWD clutch high temperature warning display	Based on the received AWD clutch high temperature warning display signal, displays a warning that the AWD clutch temperature is high.	AWD control unit
	Front/rear tire size discrepancy warning display	Based on the received front/rear tire size discrepancy warning display signal, displays a warning that there is a difference between front and rear tire speed.	AWD control unit
	Transmission system warning display	Based on the received transmission system warning display signal, displays a warning that a malfunction is present in the transmission system.	TCM
	Tire pressure monitoring system warning display	Based on the received tire pressure monitoring system warning display signal, displays a warning that an abnormality is present in the tire pressure warning system.	Low tire pressure warning control unit
	AWD system warning display	Based on the received AWD system warning display signal, displays a warning that a malfunction is present in the AWD system.	AWD control unit
Information display	Anti-lock braking system (ABS) warning display	Based on the received ABS warning display signal, displays a warning that a malfunction has occurred to ABS.	ABS actuator and electric unit (control unit)
	VDC warning display	Based on the received VDC warning display signal, displays a warning that a malfunction is present in VDC.	ABS actuator and electric unit (control unit)
	Engine system warning display	Based on the received engine status signal, displays a warning that a malfunction is present in the engine system.	ECM
	CRUISE control system warning display	Based on the received ASCD status signal, detects the CRUISE system malfunction, and displays a warning that an inspection is necessary.	ECM
	Engine oil low pressure warning display	Based on the received oil pressure sensor signal, displays a warning that the engine oil pressure is low.	Oil pressure sensor
	Brake fluid level drop warning display	Based on the received brake fluid level switch signal, displays a warning that the brake fluid is decreased.	Brake fluid level switch

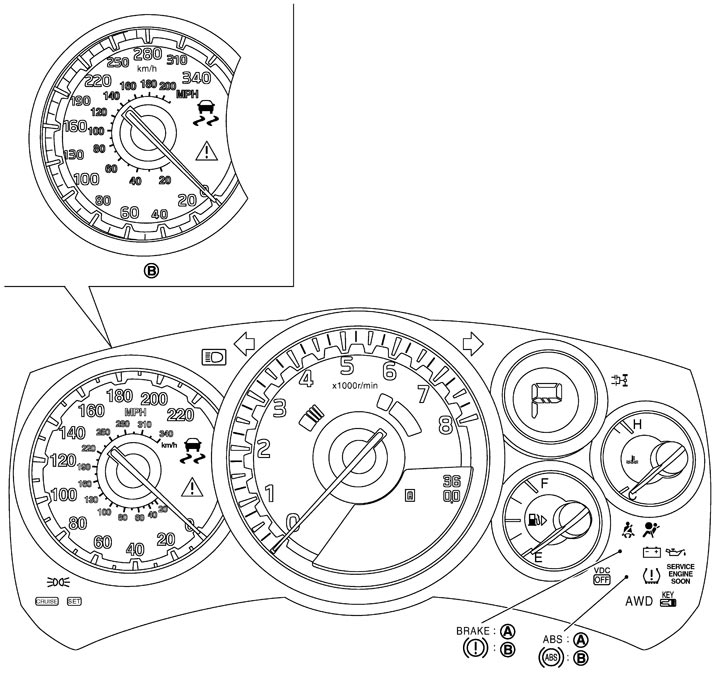

A.

For U.S.A

B.

For Canada
