OIL PRESSURE WARNING LAMP
METER SYSTEM
System Diagram
System Description
OIL PRESSURE WARNING LAMP
Control OutlineThe combination meter reads the oil pressure sensor signal from oil pressure sensor, and illuminates/turns off the oil pressure warning lamp.
NOTE：
The display of engine oil pressure warning on the information display is shown/turned off simultaneously with the illumination/turning off of the oil pressure warning lamp.Component Parts Location
|

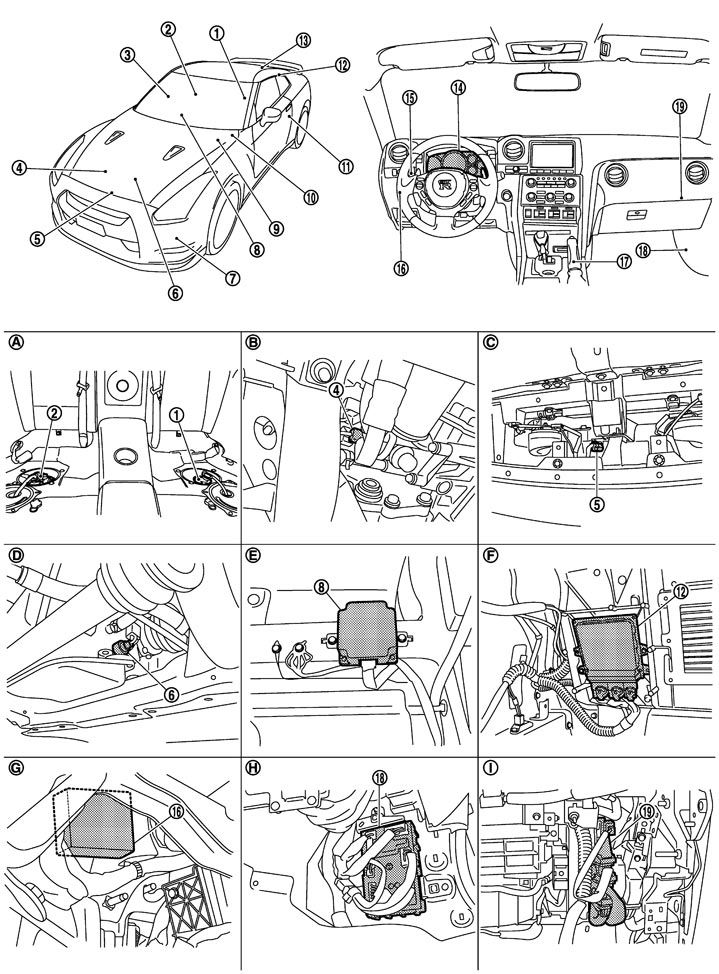

1. |
Fuel level sensor unit (Sub) |
2. |
Fuel level sensor unit (Main) |
3. |
Door switch (passenger side) |
|
4. |
Oil pressure sensor |
5. |
Ambient sensor |
6. |
Oil level sensor |
|
7. |
Washer level switch |
8. |
AWD control unit |
9. |
Brake fluid level switch |
|
10. |
ABS actuator and electric unit (control unit) |
11. |
Door switch (driver side) |
12. |
TCM |
|
13. |
Trunk switch |
14. |
Combination meter |
15. |
Combination switch (Lighting switch) |
|
16. |
Low tire pressure warning control unit |
17. |
Parking brake |
18. |
BCM |
|
19. |
ECM |
|
|
|
|
|
A. |
Under rear seat |
B. |
Right side of engine |
C. |
Radiator core support (center) |
|
D. |
Oil pan LH upper |
E. |
Front RH seat under |
F. |
Trunk room left back |
|
G. |
Lower instrument panel LH |
H. |
Dashboard side lower (passenger seat side) |
I. |
Glove box assembly back |
Component Description
|
Unit |
Description |
|
Combination meter |
Using the oil pressure sensor signal received from oil pressure sensor, illuminates/turns off the oil pressure warning lamp. |
|
Oil pressure sensor |
Detects the oil pressure of engine oil, and transmits the oil pressure sensor signal to the combination meter. |
